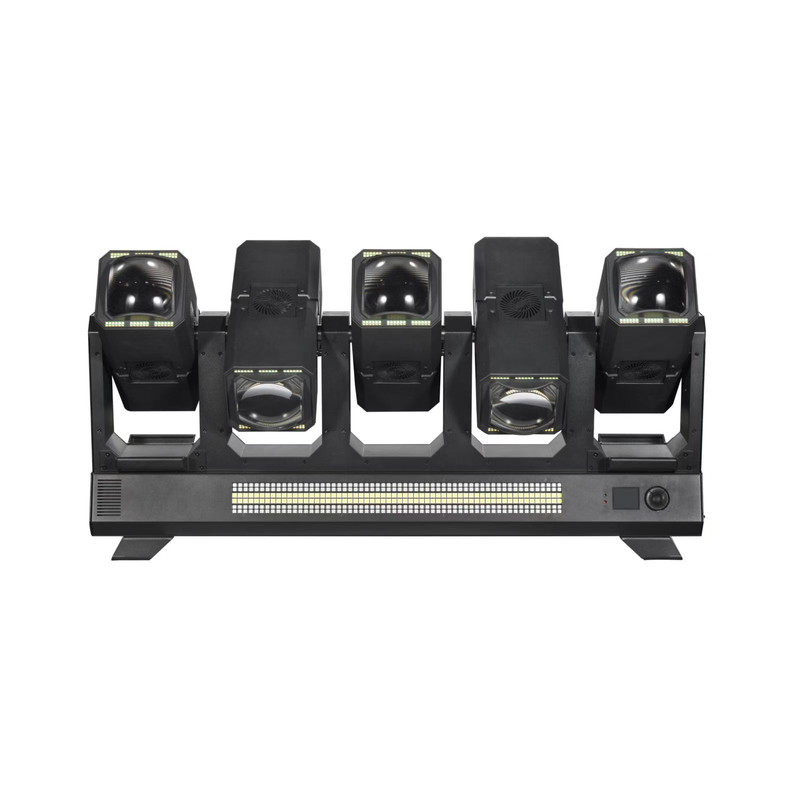

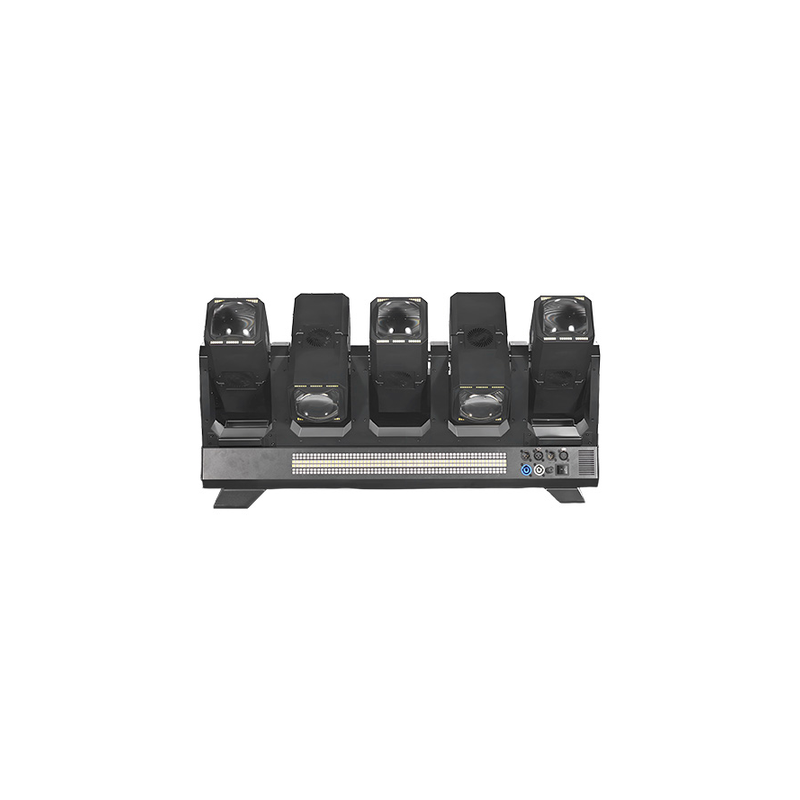

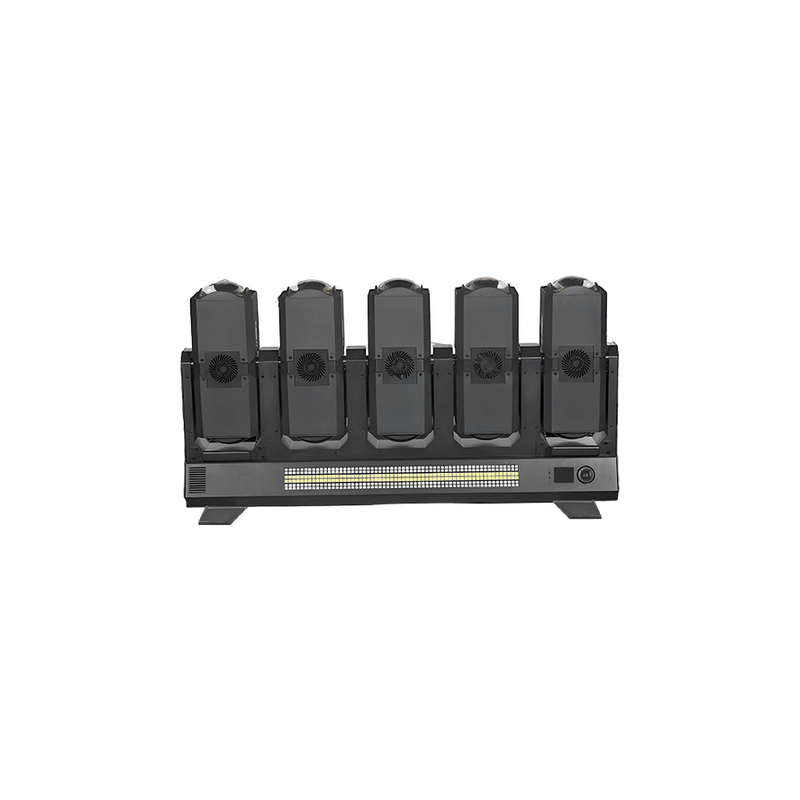

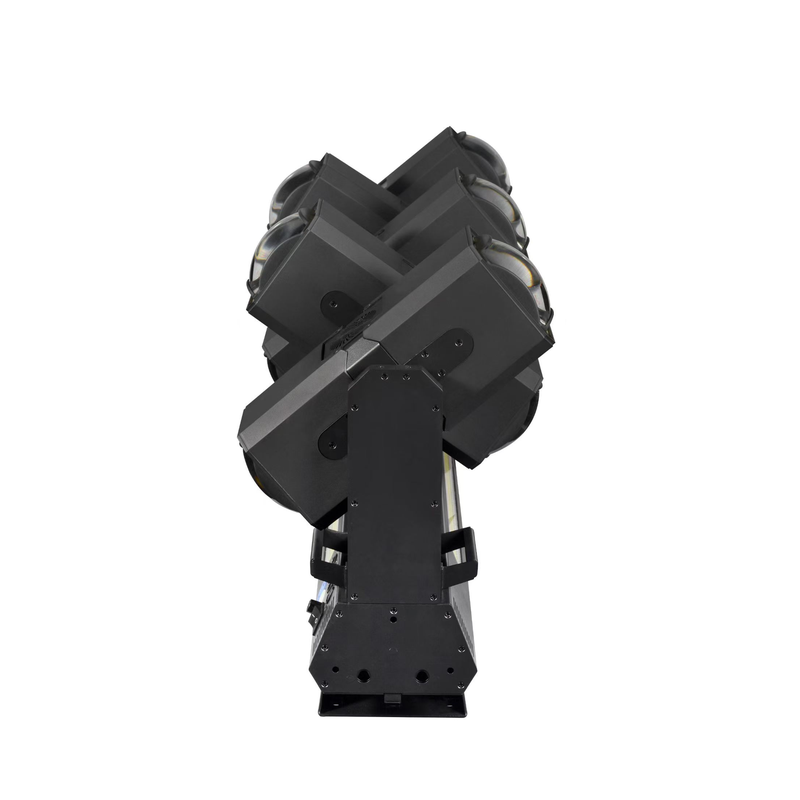

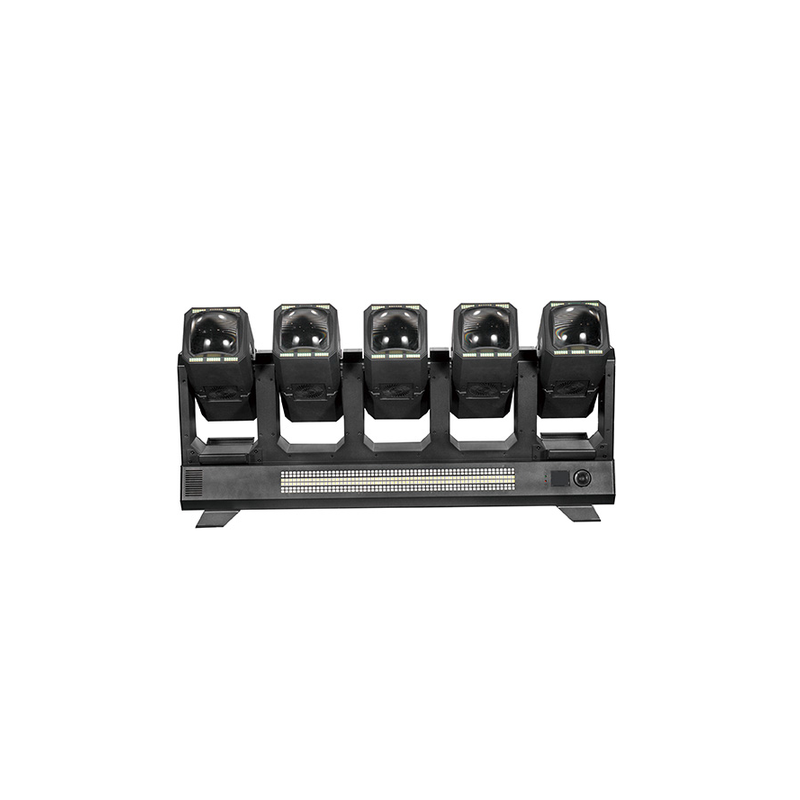

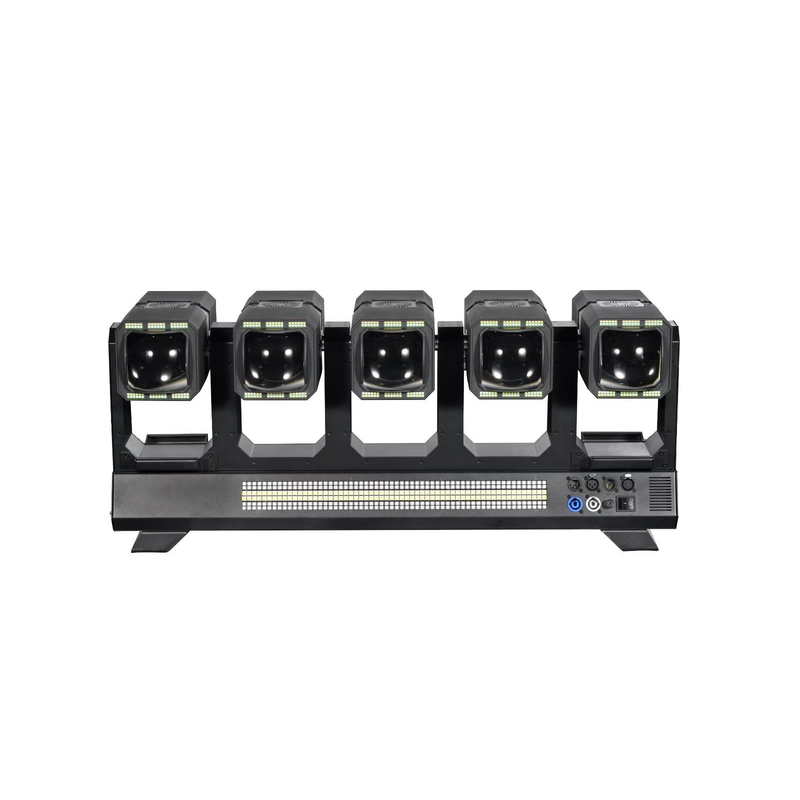

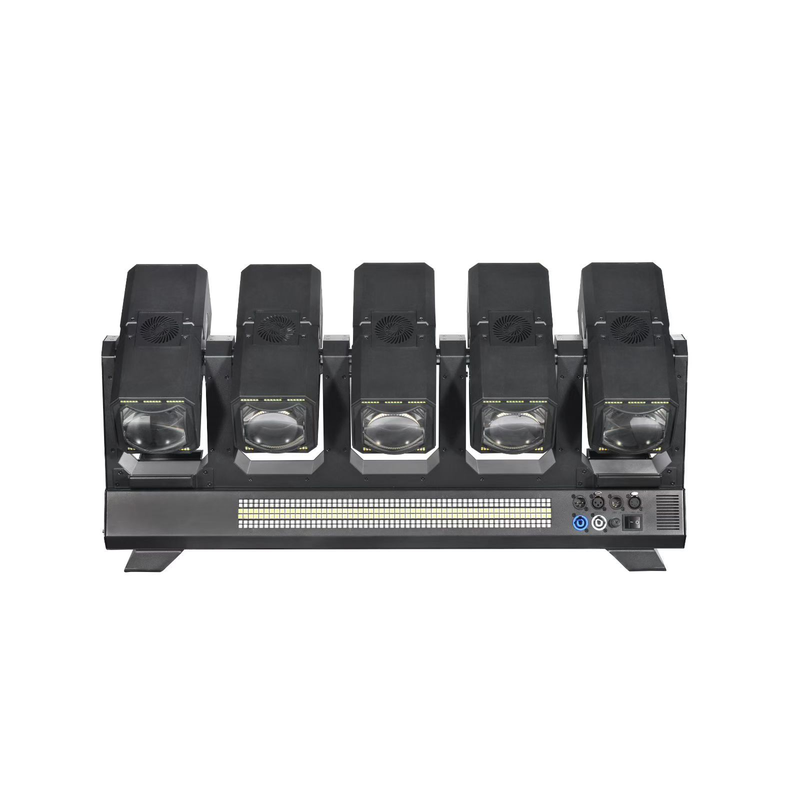

1080Q Double-Sided Infinite Beam
Double-sided infinite rotation beam for continuous aerial effects on stage, in clubs and at festivals.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | 10 × 80W RGBW LEDs 360 × 3W Warm White LEDs, 360 × 3W White LEDs (Peripheral Auxiliary) |
| Colour | Red, Green, Blue, White |
| Auxiliary Colour | Warm White, White |
| Optical Features | Infinite rotation + beam + strobe + auxiliary light |
Movement
| Tilt | 360°(Auto-correction for misalignment) |
Control
| DMX Channels | 31/44/76 channels |
Power
| Power Input | AC100–240V, 50/60Hz |
| Power Consumption | 750W |
| Power Connection | Power connector input/output |
Construction
| Housing Material | Iron + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | 0 °C to 40 °C |
Description
BMS-1080Q is a double-sided infinite rotation beam for continuous aerial effects on stage, in clubs and at festivals.
Control is 31/44/76 channels, DMX512. Power: AC100–240V, 50/60Hz, 750W. Rating and environment: IP20, Iron + Plastic, 0 °C to 40 °C. Dimensions: 900 × 173 × 498mm, net weight 25.5 kg.
Dimensions & Accessories
Product Dimensions
900 × 173 × 498mm
Net Weight
25.5 kg
Carton Dimensions
Available on request
Gross Weight
Available on request
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 1080Q Double-Sided Infinite Beam BMS-1080Q | 750W | On request | IP20 | 25.5 kg | 31/44/76 channels |
| BR-B580Q BR-B580Q | On request | On request | On request | On request | On request |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What light source does the 1080Q Double-Sided Infinite Beam use?
10 × 80W RGBW LEDs 360 × 3W Warm White LEDs, 360 × 3W White LEDs (Peripheral Auxiliary).
How many DMX channels does it need?
31/44/76 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 750W, from AC100–240V, 50/60Hz, with power connector input/output.
