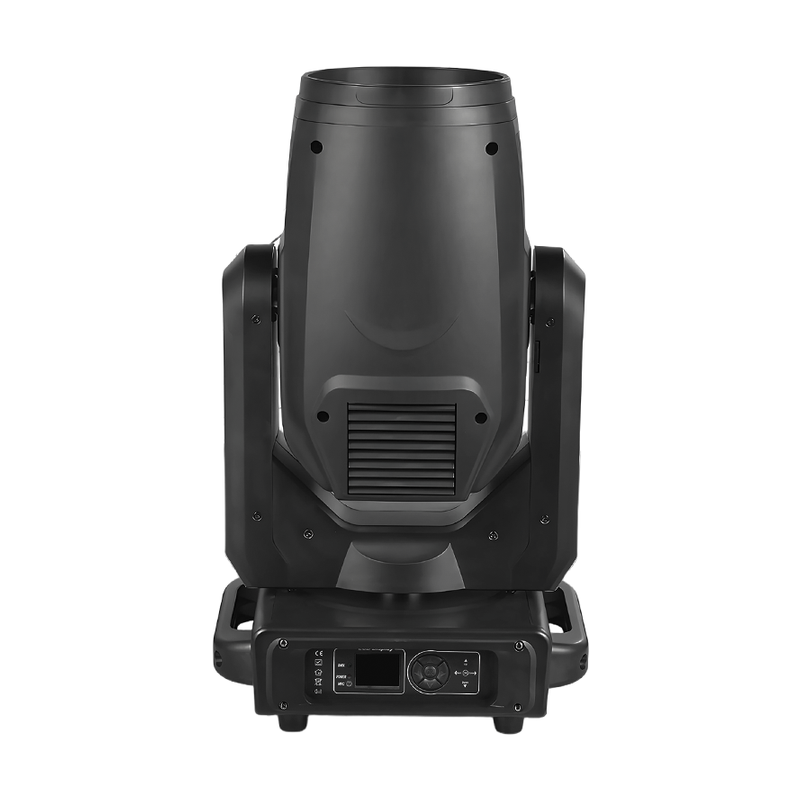

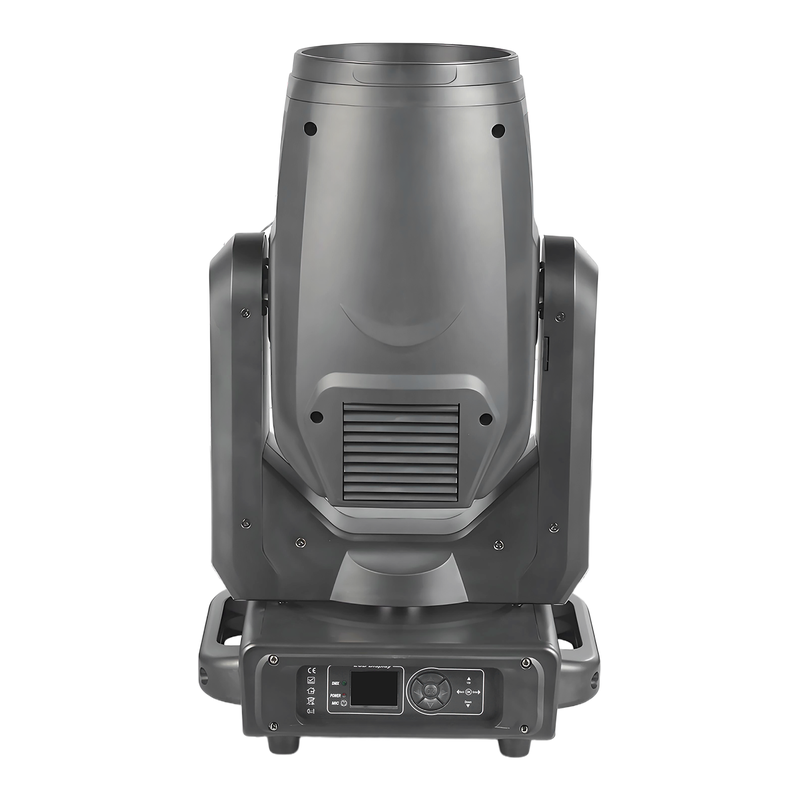

380W Prism King
380W Prism King beam moving head, built around multi-facet prism effects for touring and festivals.
Features
- 380W high-output LED/discharge engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | 380W high-brightness imported bulb |
| Average Lamp Life | 2,000 hours |
| Beam Angle | 2° |
| Lens Aperture | 165mm (Advanced multi-layer coated optics) |
Dynamic Effects
| Colour Wheel | 13 colors + white, color flow, can achieve color rainbow |
| Fixed Gobo Wheel | 13 fixed gobos + white |
| Prism | 6-facet prism, 8-facet prism, 24+48-facet prism, any two can be overlapped, can be rotated bidirectional |
| Dimmer | Mechanical linear dimming 0–100% |
| Strobe | Fast stroboscopic, multi-stroboscopic mode selection, pulse slow to fast, gradual full to fast, random slow to fast |
Movement
| Pan | 540°, precision 2.11°/ step, fine tuning accuracy 0.008° |
| Tilt | 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Auto-correction for misalignment) |
Control
| DMX Channels | 16 Channels |
| Display | Built-in color LCD panel, 4 mechanical keys |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 500W |
| Power Connection | Power connector input/output |
| Signal Connection | Three-core XLR input/output |
Construction
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | -20 °C to 40 °C |
| Cooling | Fans |
Description
BMS-380PRISM is the 380W Prism King beam moving head, built around multi-facet prism effects for touring and festivals. The light source is 380W high-brightness imported bulb. The beam angle is 2°, through a 165mm (Advanced multi-layer coated optics) lens. Lamp life is rated at 2,000 hours.
Effects and output: colour wheel: 13 colors + white, color flow, can achieve color rainbow; gobo wheel: 13 fixed gobos + white; prism: 6-facet prism, 8-facet prism, 24+48-facet prism, any two can be overlapped, can be rotated bidirectional; dimming: Mechanical linear dimming 0–100%; strobe: Fast stroboscopic, multi-stroboscopic mode selection, pulse slow to fast, gradual full to fast, random slow to fast.
Control is 16 Channels, DMX512, setup through Built-in color LCD panel, 4 mechanical keys. Power: AC100-240V, 50/60Hz, 500W. Signal: Three-core XLR input/output. Rating and environment: IP20, -20 °C to 40 °C, cooling by fans. Dimensions: 325 × 261 × 536mm, net weight 14 kg, gross weight 16 kg.
Dimensions & Accessories
Product Dimensions
325 × 261 × 536mm
Net Weight
14 kg
Carton Dimensions
Available on request
Gross Weight
16 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 281 BEAM Moving Head BMS-281BEAM | On request | On request | On request | On request | On request |
| 300W BEAM BMS-300BEAM | 450W | 2° | IP20 | 13 kg | 16/24 channels |
| 380W Prism King BMS-380PRISM | 500W | 2° | IP20 | 14 kg | 16 Channels |
| 382 Moving Beam BMS-382BEAM | 500W | 2° | IP20 | 14 kg | 16 Channels |
| 420 Moving Beam BMS-420BEAM | 600W | 2° | IP20 | 18 kg | 24/28 Channels |
| Mini 250 BEAM BMS-MINI250 | On request | On request | On request | On request | On request |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What beam angle does the 380W Prism King use?
2°, through a 165mm (Advanced multi-layer coated optics) lens. The angle is fixed by the optical train, so the look comes from the prisms and gobo wheel. The fixture carries 6-facet prism, 8-facet prism, 24+48-facet prism, any two can be overlapped, can be rotated bidirectional.
How far does it move?
Pan 540°, precision 2.11°/ step, fine tuning accuracy 0.008° and tilt 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Auto-correction for misalignment).
What strobe performance does it offer?
Fast stroboscopic, multi-stroboscopic mode selection, pulse slow to fast, gradual full to fast, random slow to fast. Dimming is Mechanical linear dimming 0–100%.
How many DMX channels does it need?
16 Channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
