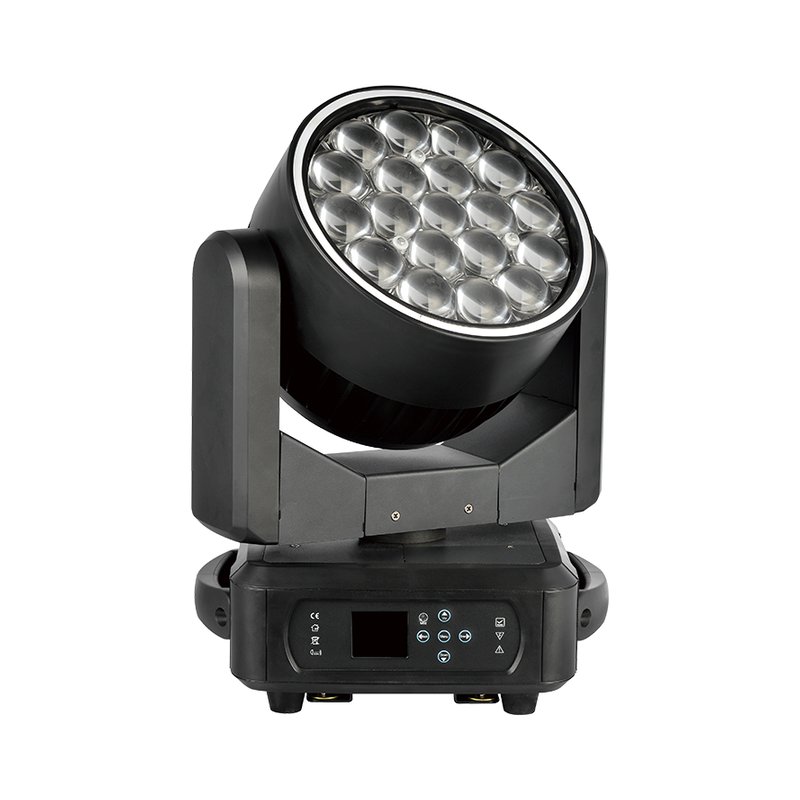

1915 Moving Wash Zoom
1915 moving wash zoom with 19 x 15W RGBW LEDs and motorised zoom for theatres and touring.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | 19 × 15W RGBW 4-in-1 LEDs 39 × 0.5W RGB 3-in-1 LEDs (Peripheral Auxiliary) |
| Colour | Red, Green, Blue, White |
| Auxiliary Colour | Red, Green, Blue |
| Average Lamp Life | 50,000 hours |
| Focus | 6-45° |
Dynamic Effects
| Dimmer | 0-100% linear dimming system |
Movement
| Pan | 540° |
| Tilt | 270° |
| Pan / Tilt Resolution | 16-bit |
Control
| DMX Channels | 18/26 Channels |
| Display | Built-in color LCD panel, 4 mechanical keys |
Power
| Power Input | 100-240V, 50/60Hz |
| Power Consumption | 320W |

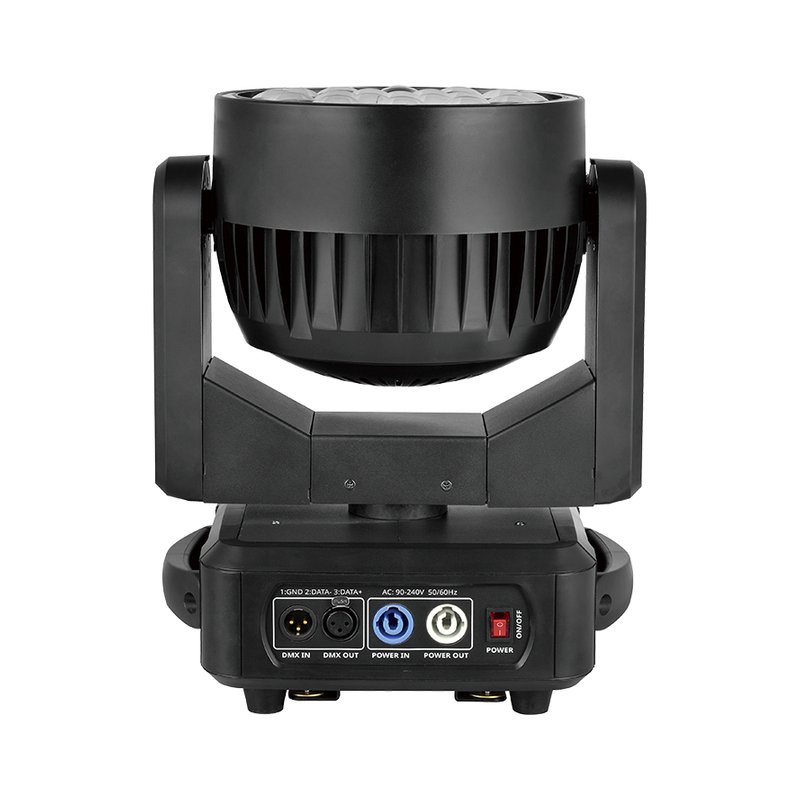

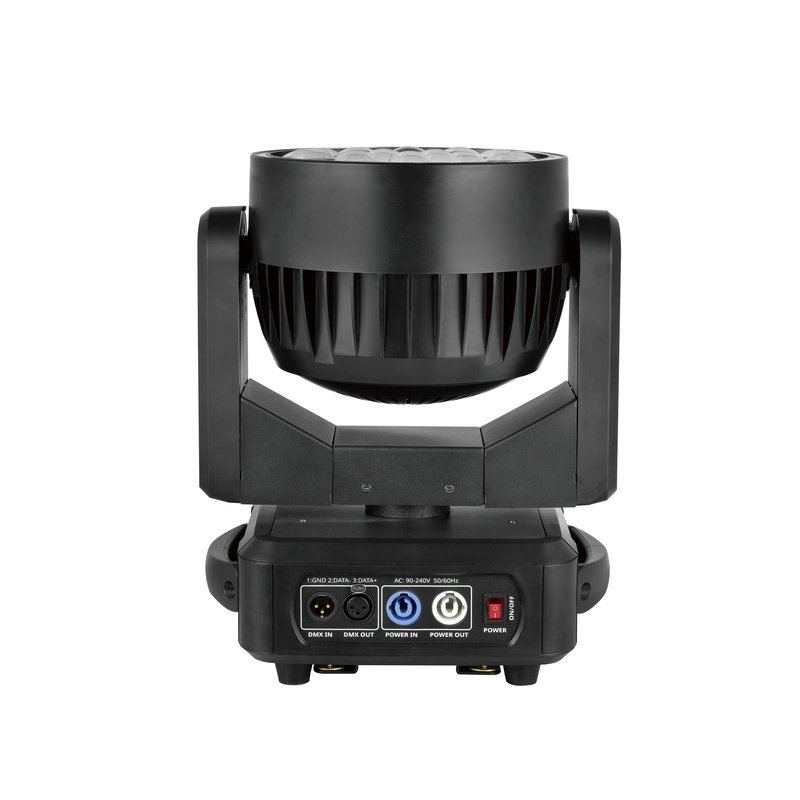

| Power Connection | Power connector input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | -10 °C to 40 °C |
| Cooling | Fans |
Description
BMS-1915WASH is a 1915 moving wash zoom with 19 x 15W RGBW LEDs and motorised zoom for theatres and touring. Lamp life is rated at 50,000 hours.
Effects and output: dimming: 0-100% linear dimming system.
Control is 18/26 Channels, DMX512, setup through Built-in color LCD panel, 4 mechanical keys. Power: 100-240V, 50/60Hz, 320W. Rating and environment: IP20, Aluminum + Plastic, -10 °C to 40 °C, cooling by fans. Dimensions: 300 × 235 × 360mm, net weight 8.5 kg, gross weight 10 kg.
Dimensions & Accessories
Product Dimensions
300 × 235 × 360mm
Net Weight
8.5 kg
Carton Dimensions
370 × 290 × 460mm
Gross Weight
10 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 1225 Moving Wash BMS-1225WASH | 260W | On request | IP20 | 8.5 kg | 16 channels |
| 1915 Moving Wash Zoom BMS-1915WASH | 320W | On request | IP20 | 8.5 kg | 18/26 Channels |
| 1925 Bee Eye BMS-1925BEE | 600W | On request | IP20 | 12 kg | 24/28/104 Channels |
| Mini 740 Bee Eye BMS-MINI740BEE | 280W | On request | IP20 | 5.5 kg | 24/28/56 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What light source does the 1915 Moving Wash Zoom use?
19 × 15W RGBW 4-in-1 LEDs 39 × 0.5W RGB 3-in-1 LEDs (Peripheral Auxiliary).
How far does it move?
Pan 540° and tilt 270°, with 16-bit.
How many DMX channels does it need?
18/26 Channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 320W, from 100-240V, 50/60Hz, with power connector input/output.
