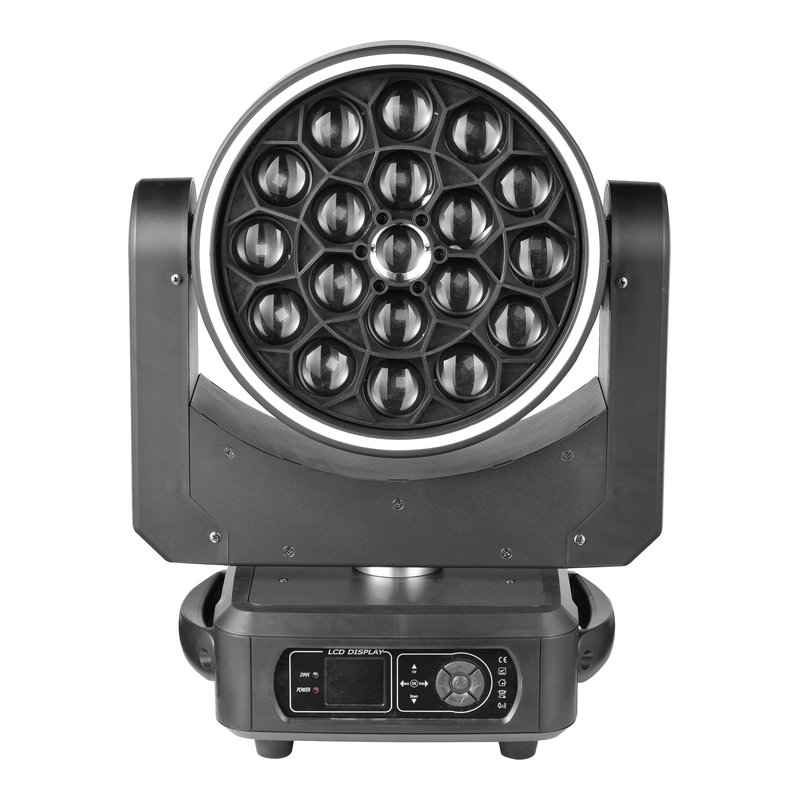

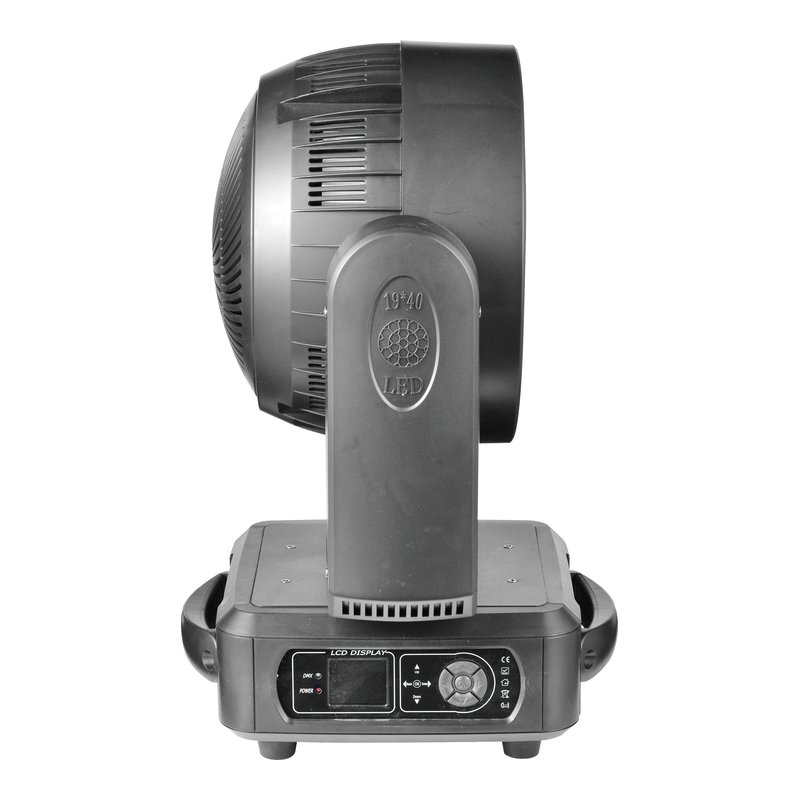

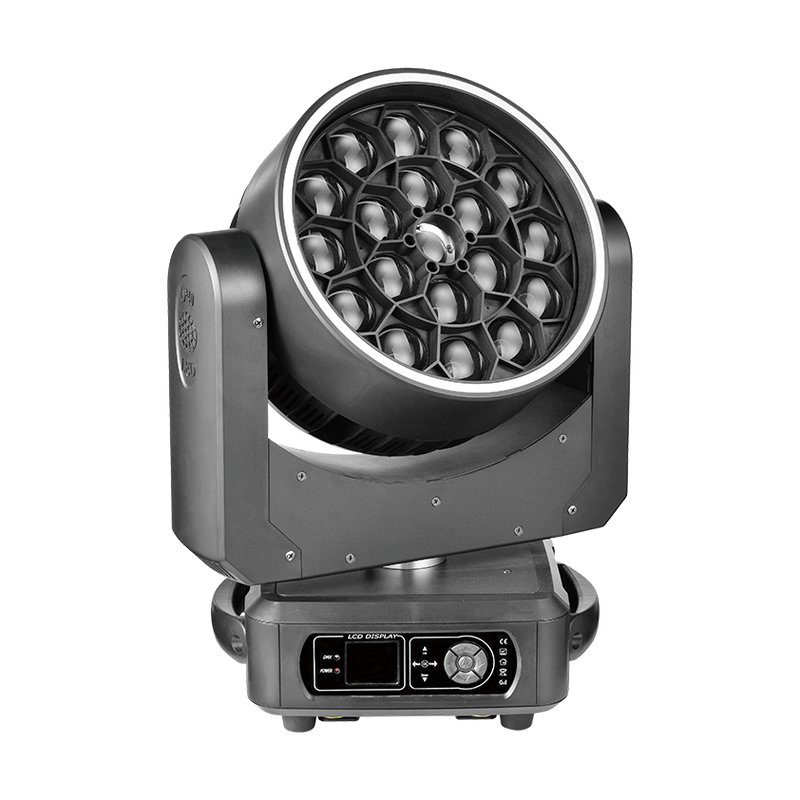

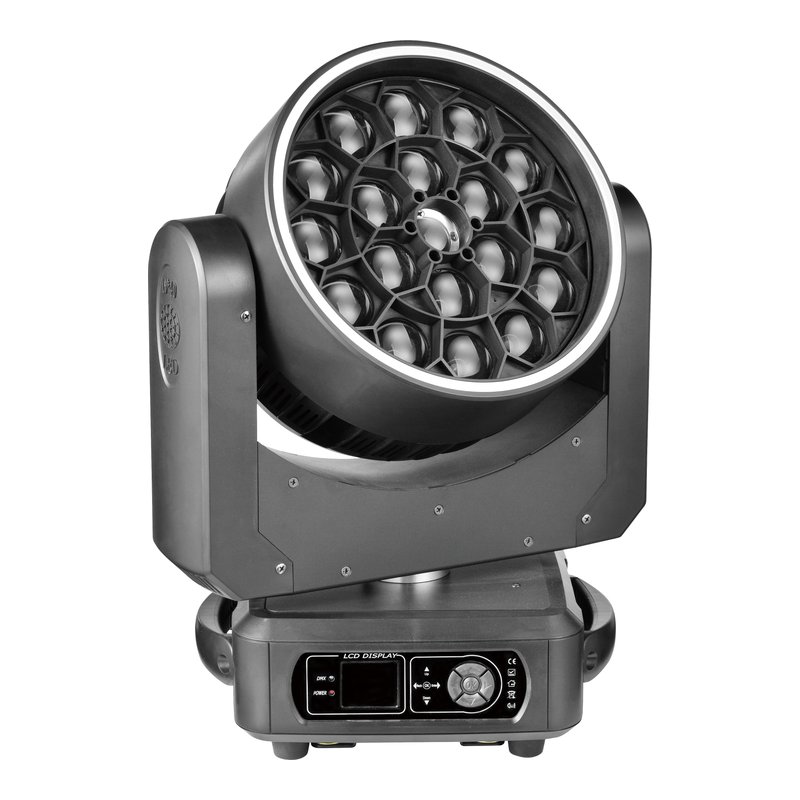

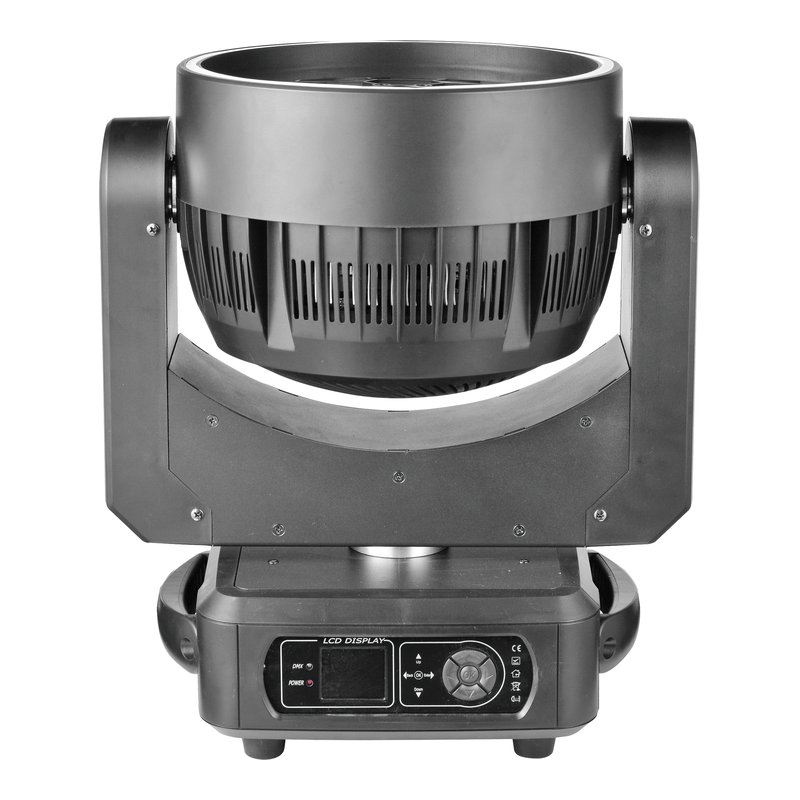

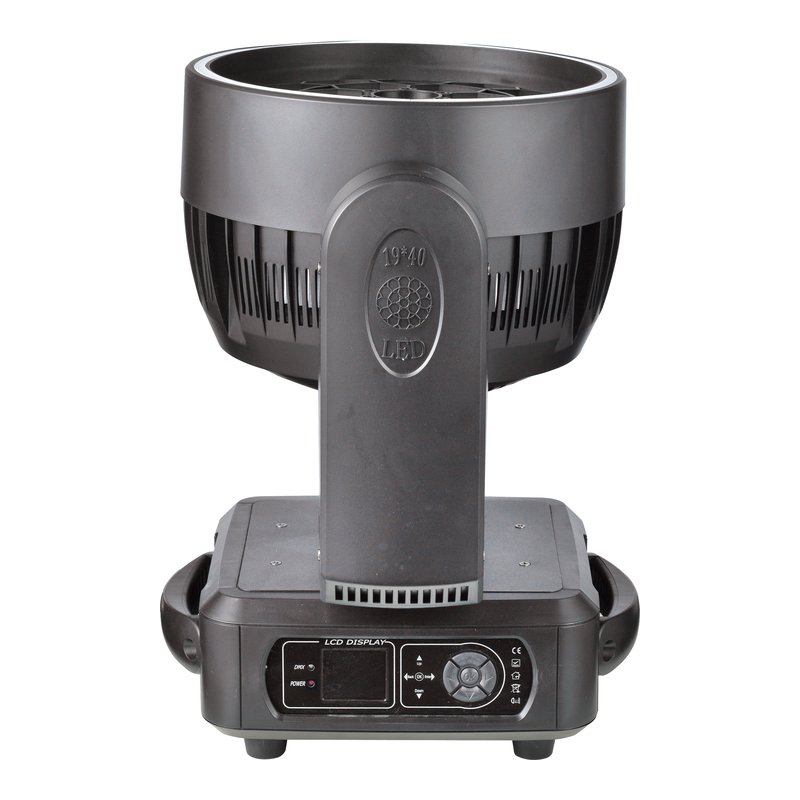

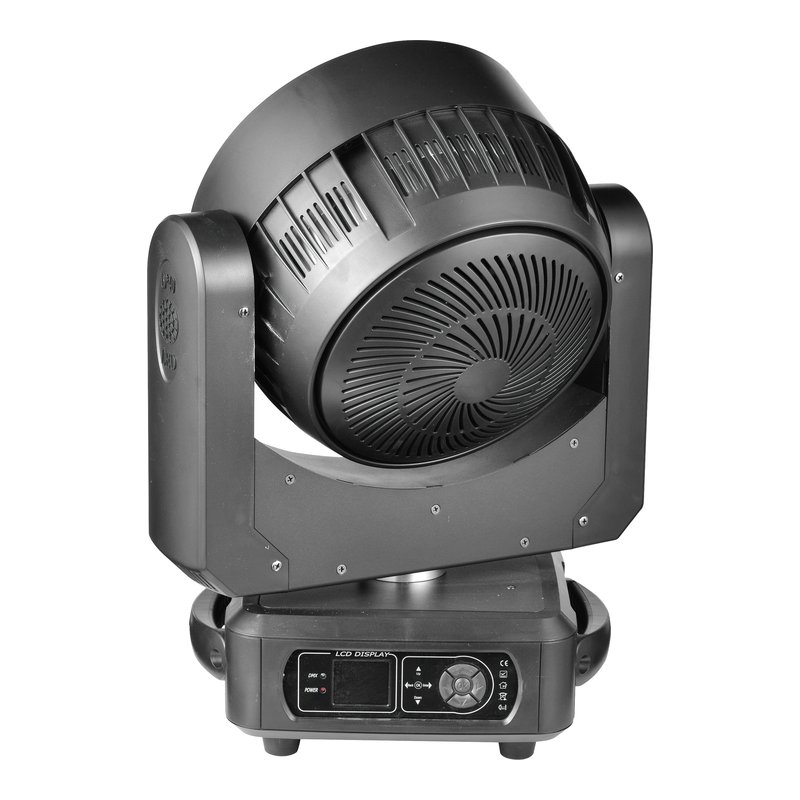

1925 Bee Eye
1925 Bee Eye moving head: a multi-lens fixture for beam, wash and eye-candy effects on stage.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | 19 × 40W Osram 4-in-1 LEDs 45 × 0.5W RGB 3-in-1 LEDs (Peripheral Auxiliary) |
| Colour | Red, Green, Blue, White |
| Auxiliary Colour | Red, Green, Blue |
| Zoom | 4-60° |
Dynamic Effects
| Dimmer | 0-100% linear electronic dimming |
| Strobe | Supports mechanical stroboscopic, adjustable stroboscopic, and stroboscopic macro function |
| Pixel Control | Single LED can be controlled individually |
Movement
| Pan | 540° |
| Tilt | 270° |
| Front Mirror Disk | Rotated bidirectionally and infinitely |
Control
| DMX Channels | 24/28/104 Channels |
| Display | Color screen |
| Motor | Three-phase motor operation, magnetic coding accurate positioning |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 600W |
| Power Connection | Power connector input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | -10 °C to 40 °C |
| Cooling | Fans |
Description
BMS-1925BEE is the 1925 Bee Eye moving head: a multi-lens fixture for beam, wash and eye-candy effects on stage.
Effects and output: dimming: 0-100% linear electronic dimming; strobe: Supports mechanical stroboscopic, adjustable stroboscopic, and stroboscopic macro function; pixel control: Single LED can be controlled individually.
Control is 24/28/104 Channels, DMX512, setup through Color screen. Power: AC100-240V, 50/60Hz, 600W. Rating and environment: IP20, Aluminum + Plastic, -10 °C to 40 °C, cooling by fans. Dimensions: 298 × 237 × 418mm, net weight 12 kg, gross weight 14 kg.
Dimensions & Accessories
Product Dimensions
298 × 237 × 418mm
Net Weight
12 kg
Carton Dimensions
490 × 360 × 470mm
Gross Weight
14 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 1225 Moving Wash BMS-1225WASH | 260W | On request | IP20 | 8.5 kg | 16 channels |
| 1915 Moving Wash Zoom BMS-1915WASH | 320W | On request | IP20 | 8.5 kg | 18/26 Channels |
| 1925 Bee Eye BMS-1925BEE | 600W | On request | IP20 | 12 kg | 24/28/104 Channels |
| Mini 740 Bee Eye BMS-MINI740BEE | 280W | On request | IP20 | 5.5 kg | 24/28/56 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What light source does the 1925 Bee Eye use?
19 × 40W Osram 4-in-1 LEDs 45 × 0.5W RGB 3-in-1 LEDs (Peripheral Auxiliary).
How far does it move?
Pan 540° and tilt 270°.
What strobe performance does it offer?
Supports mechanical stroboscopic, adjustable stroboscopic, and stroboscopic macro function. Dimming is 0-100% linear electronic dimming.
How many DMX channels does it need?
24/28/104 Channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
