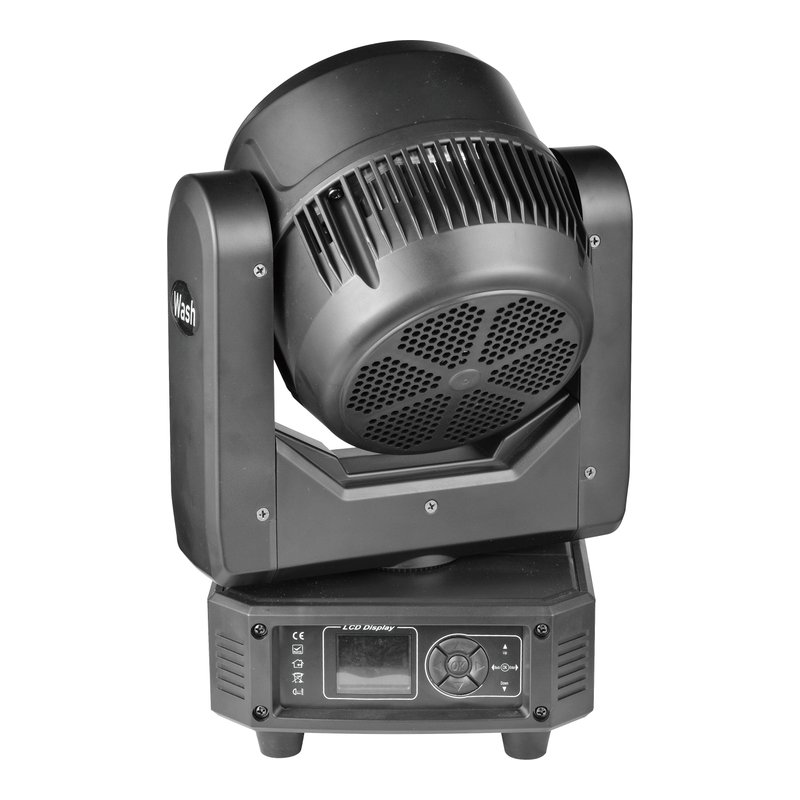

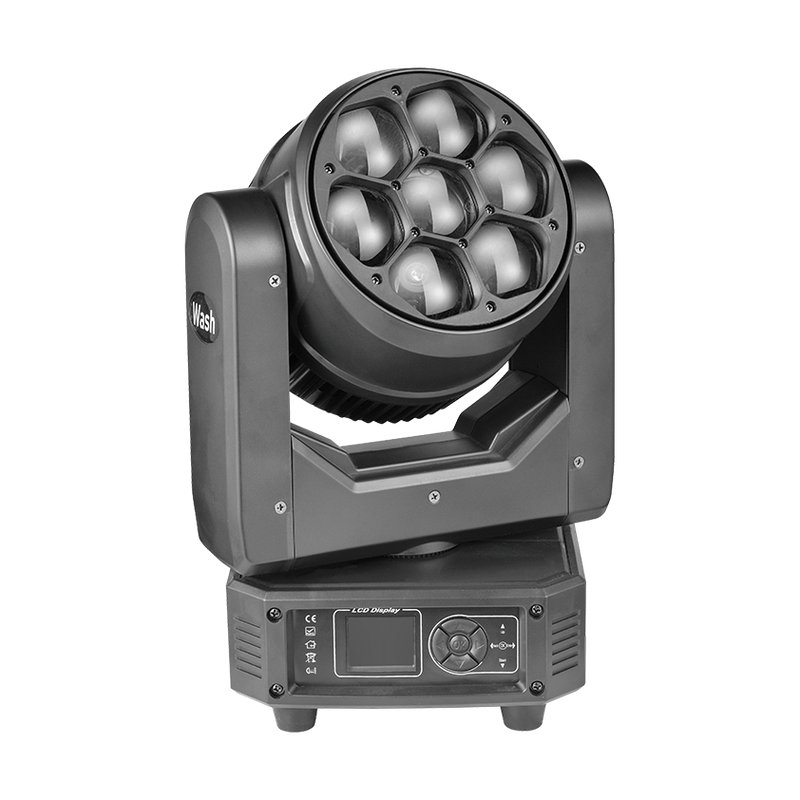

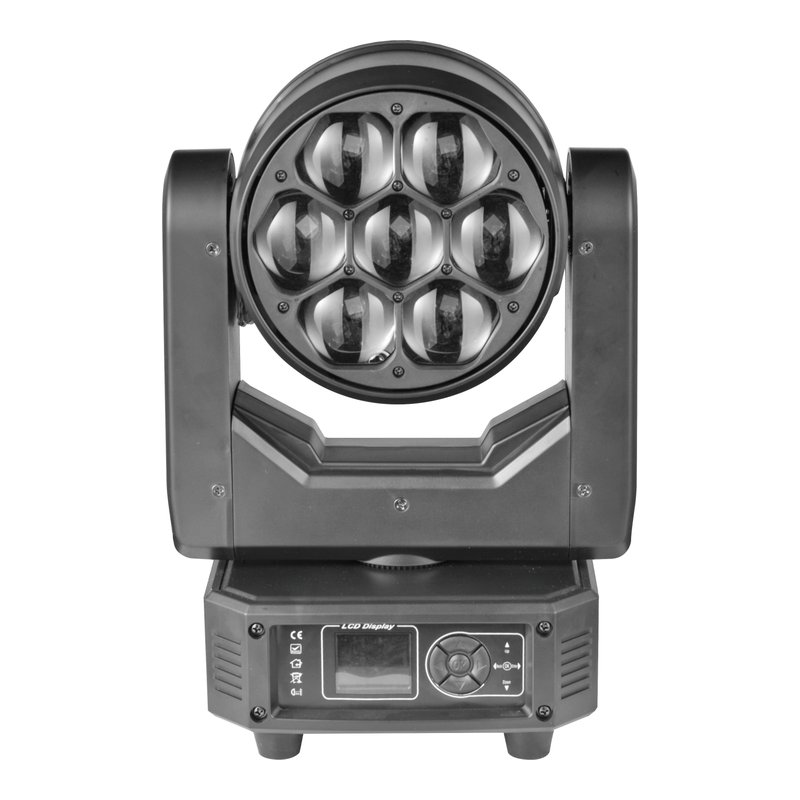

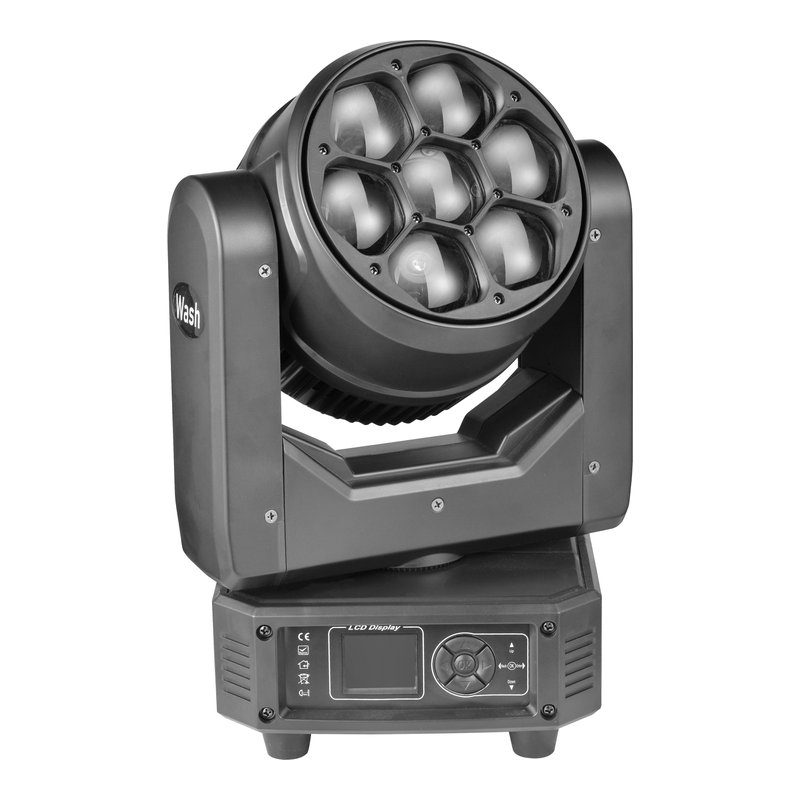

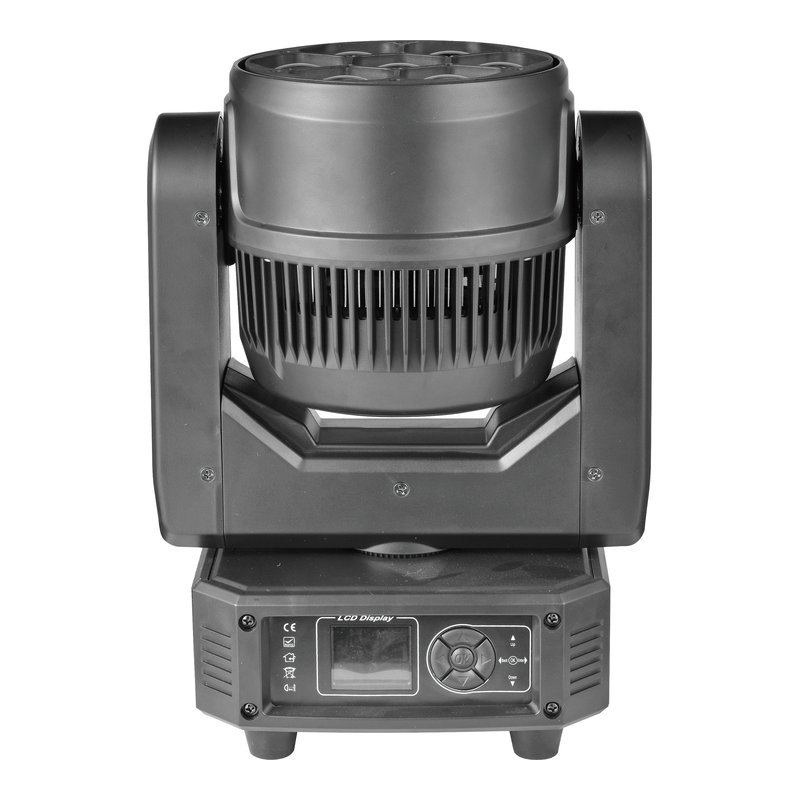

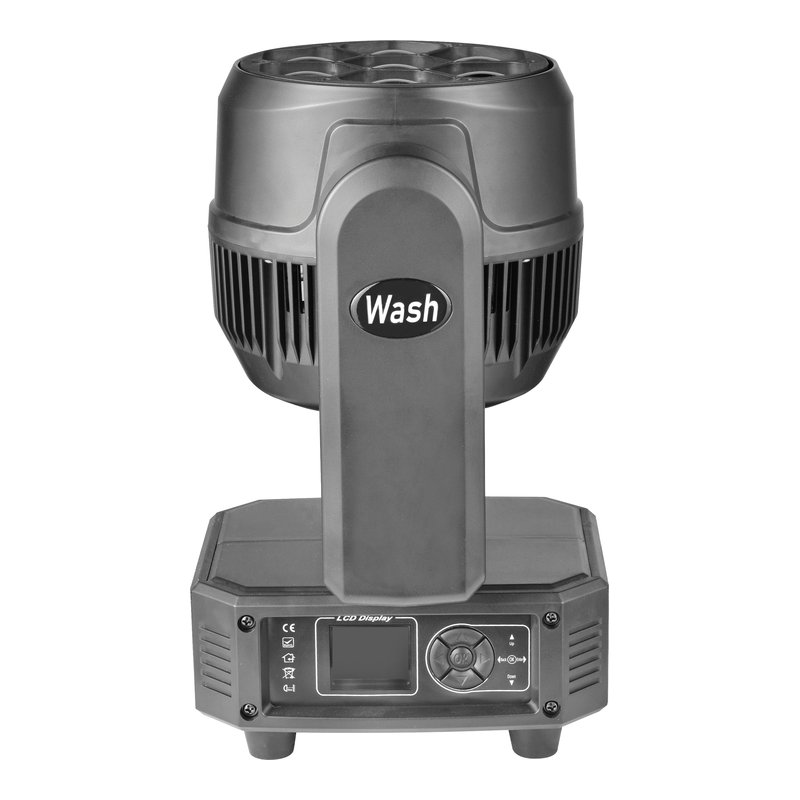

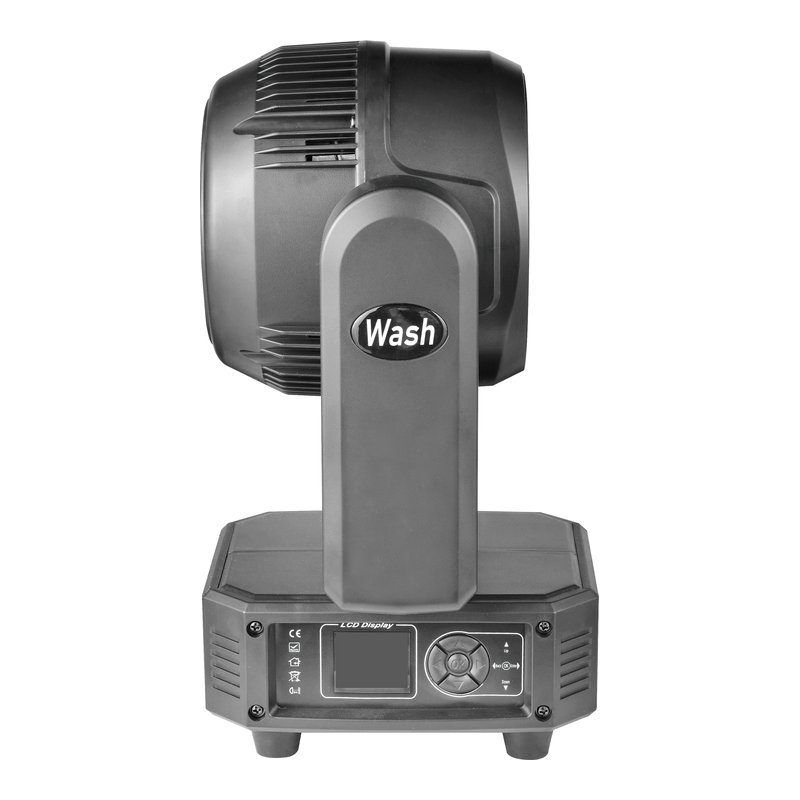

Mini 740 Bee Eye
Mini 740 Bee Eye with 7 x 40W RGBW LEDs: compact, wide-angle effects for clubs and small stages.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | 7 × 40W RGBW 4-in-1 LED |
| Colour | Red, Green, Blue, White |
| Focus | 3.5°-45° |
Movement
| Pan | 540° |
| Tilt | 270° |
| Pan / Tilt Resolution | 16-bit |
Control
| DMX Channels | 24/28/56 channels |
| Display | Color LCD display, 180° can be rotated |
Power
| Power Input | AC100-240V, 50/60 Hz |
| Power Consumption | 280W |
| Power Connection | Power connector input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | -10 °C to 40 °C |
| Cooling | Fans |
Description
BMS-MINI740BEE is the Mini 740 Bee Eye with 7 x 40W RGBW LEDs: compact, wide-angle effects for clubs and small stages.
Control is 24/28/56 channels, DMX512, setup through Color LCD display, 180° can be rotated. Power: AC100-240V, 50/60 Hz, 280W. Rating and environment: IP20, Aluminum + Plastic, -10 °C to 40 °C, cooling by fans. Dimensions: 205 × 160 × 330mm, net weight 5.5 kg, gross weight 7 kg.
Dimensions & Accessories
Product Dimensions
205 × 160 × 330mm
Net Weight
5.5 kg
Carton Dimensions
406 × 244 × 315mm
Gross Weight
7 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 1225 Moving Wash BMS-1225WASH | 260W | On request | IP20 | 8.5 kg | 16 channels |
| 1915 Moving Wash Zoom BMS-1915WASH | 320W | On request | IP20 | 8.5 kg | 18/26 Channels |
| 1925 Bee Eye BMS-1925BEE | 600W | On request | IP20 | 12 kg | 24/28/104 Channels |
| Mini 740 Bee Eye BMS-MINI740BEE | 280W | On request | IP20 | 5.5 kg | 24/28/56 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What light source does the Mini 740 Bee Eye use?
7 × 40W RGBW 4-in-1 LED.
How far does it move?
Pan 540° and tilt 270°, with 16-bit.
How many DMX channels does it need?
24/28/56 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 280W, from AC100-240V, 50/60 Hz, with power connector input/output.
