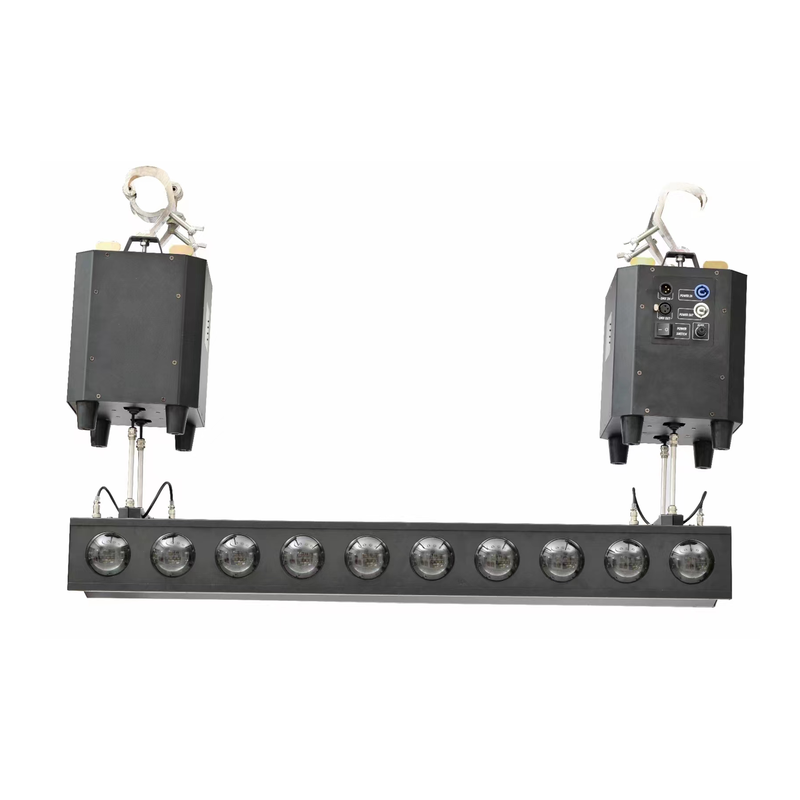

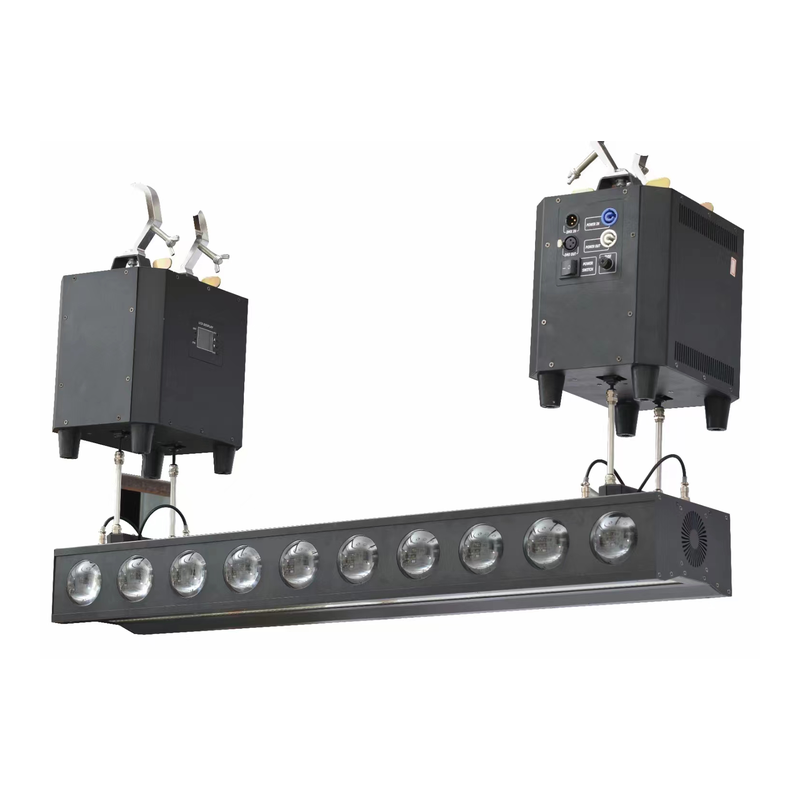

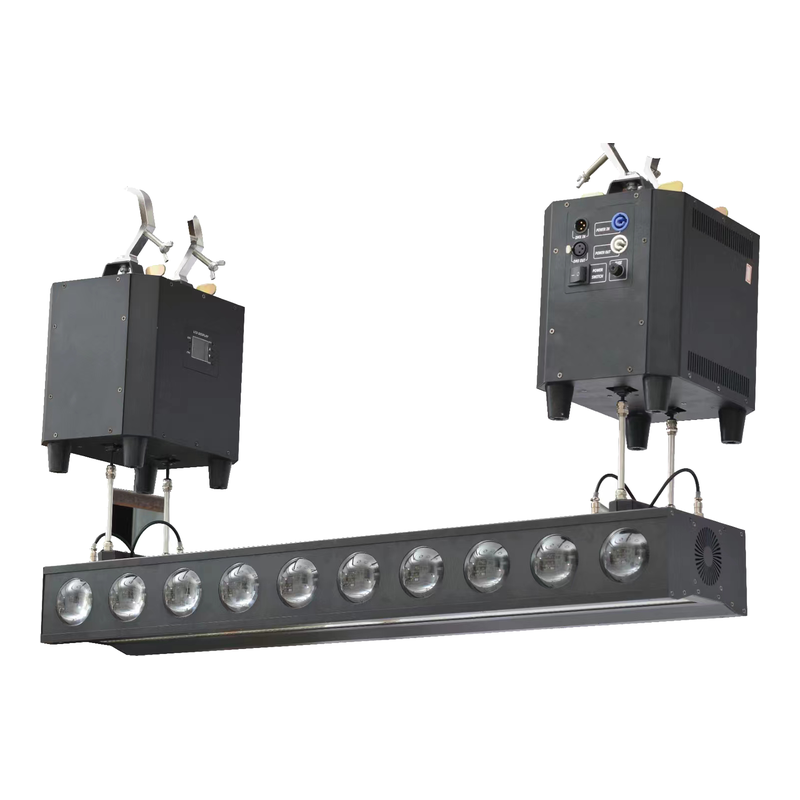

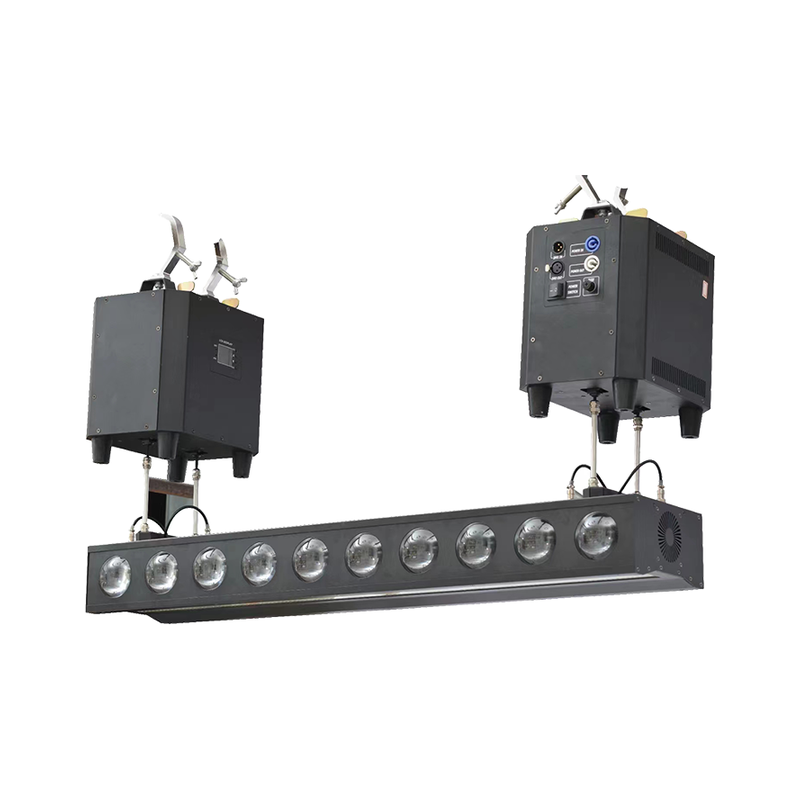

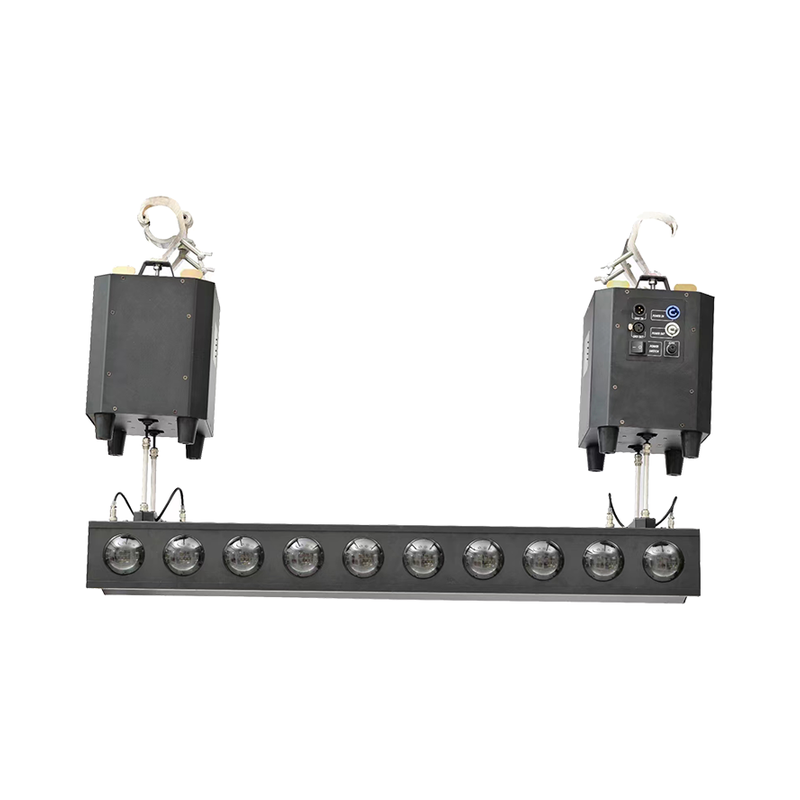

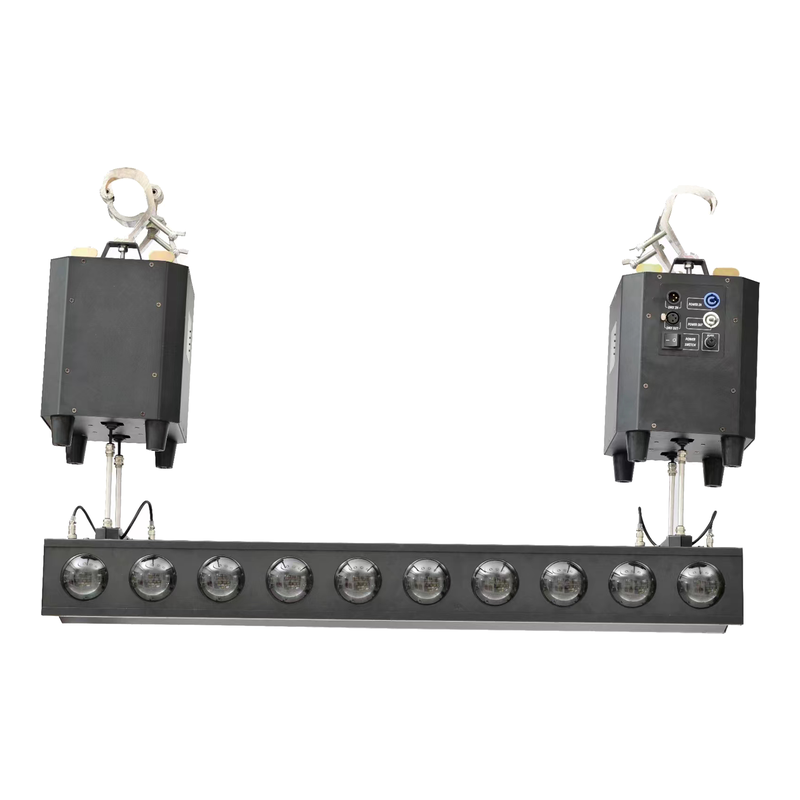

Lifting Beam Strobe
BMS-LIFTSTROBE combines a motorised lifting beam with a high-output strobe for dramatic stage reveals and club effects.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Control
| DMX Channels | 41/101 channels |
Power
| Power Input | AC90-240V, 50/60Hz |
| Power Consumption | 800W |
| Power Connection | Power connector input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | 5 °C to 45 °C |
| Cooling | Fans |
Lifting Host
| Lifting Stroke | 6-10 Meters |
| Maximum Load | 15 kg |
| Lifting Host Power | 50W |
| Lifting Host Net Weight | 15 kg |
| Lifting Host Gross Weight | 16 kg |
Beam Exposure
| Beam Exposure Type | 20 × 40W OSRAM 4-in-1 LEDs (Double-sided Beam) 240 5W 7575 White LEDs, 480 0.5W RGB LEDs (Strobe) |
| Beam Exposure Angle | 3° |
| Outlet Aperture | 70mm |
| Length | 102cm |
| Beam Exposure Dimmer | 0-100% linear dimming |
| Beam Exposure Strobe | Horse-running, flash effect |
| Beam Exposure Pixel | Single LED can be controlled individually |
| Beam Exposure Power | 700W |
| Beam Exposure Net Weight | 8 kg |
| Beam Exposure Gross Weight | 9 kg |
Description
BMS-LIFTSTROBE combines a motorised lifting beam with a high-output strobe for dramatic stage reveals and club effects.
The lifting assembly is specified as lifting stroke: 6-10 Meters; maximum load: 15 kg; host power: 50W; exposure angle: 3°; exposure length: 102cm; exposure pixel control: Single LED can be controlled individually; exposure strobe: Horse-running, flash effect.
Control is 41/101 channels, DMX512. Power: AC90-240V, 50/60Hz, 800W. Rating and environment: IP20, Aluminum + Plastic, 5 °C to 45 °C, cooling by fans. Dimensions: net weight 38 kg, gross weight 41 kg.
Dimensions & Accessories
Product Dimensions
Available on request
Net Weight
38 kg
Carton Dimensions
1080 × 190 × 315mm (Light)
Gross Weight
41 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 12 Heads Lifting Beam BMS-LIFT12 | On request | On request | On request | On request | On request |
| Lifting Beam Strobe BMS-LIFTSTROBE | 800W | On request | IP20 | 38 kg | 41/101 channels |
| Lifting Halo Ring Light 36 BMS-LIFTHALO36 | 750W + 400W*3 | On request | IP20 | 82 kg | 4/9/144 channels |
| Lifting Rotation Beam BMS-LIFTROT | 550W | On request | IP20 | 44 kg | 26/58 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
How many DMX channels does it need?
41/101 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 800W, from AC90-240V, 50/60Hz, with power connector input/output.
What is the lifting specification?
Lifting stroke 6-10 meters, maximum load 15 kg.
