Lifting Halo Ring Light 36
36-segment lifting halo ring light for aerial rings, club effects and stage looks.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Control
| DMX Channels | 4/9/144 channels |
Power
| Power Input | AC 90V-240V, 50/60Hz |
| Power Consumption | 750W + 400W*3 |
| Power Connection | Power connector input/output |
Construction
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | 0 °C to 40 °C |
| Cooling | Fans |
Lifting Host
| Lifting Host Type | 3 units |
| Lifting Stroke | 6 meters |
| Maximum Load | 10 kg |
| Lifting Speed | 0.5M/s |
| Safety | Physical brake + electronic protection |
| Lifting Host Net Weight | 20 kg*3 |
Beam Ball
| Beam Ball Type | 36 × 40W imported RGBW LEDs |
| Beam Ball Beam Angle | 2.5° |
| Halo Ring Diameter | 1200mm |
| Beam Ball Pixel Control | Single LED can be controlled individually |
| Beam Ball Net Weight | 22 kg |
Description

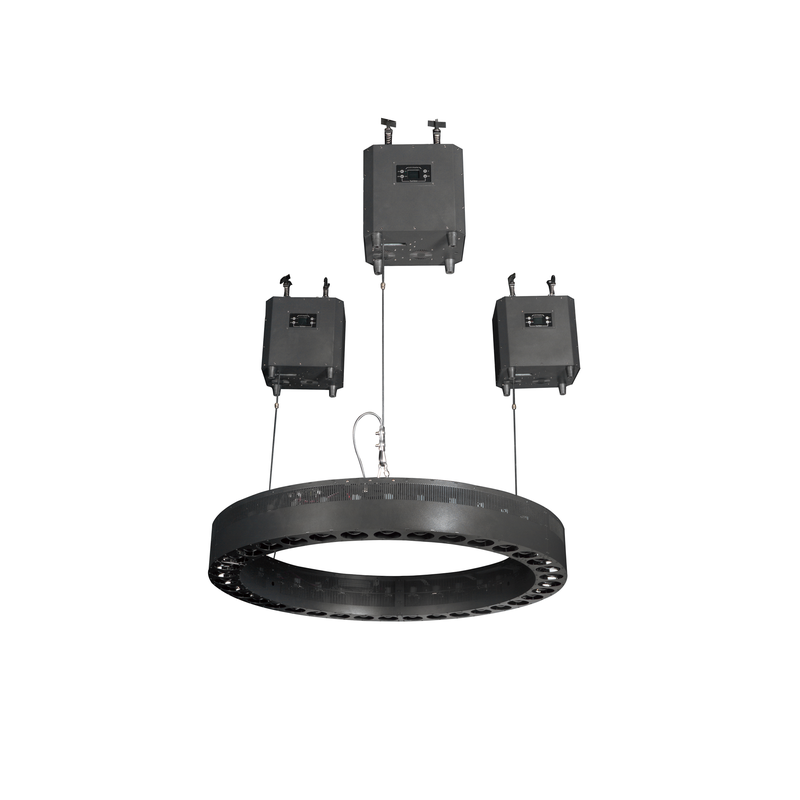

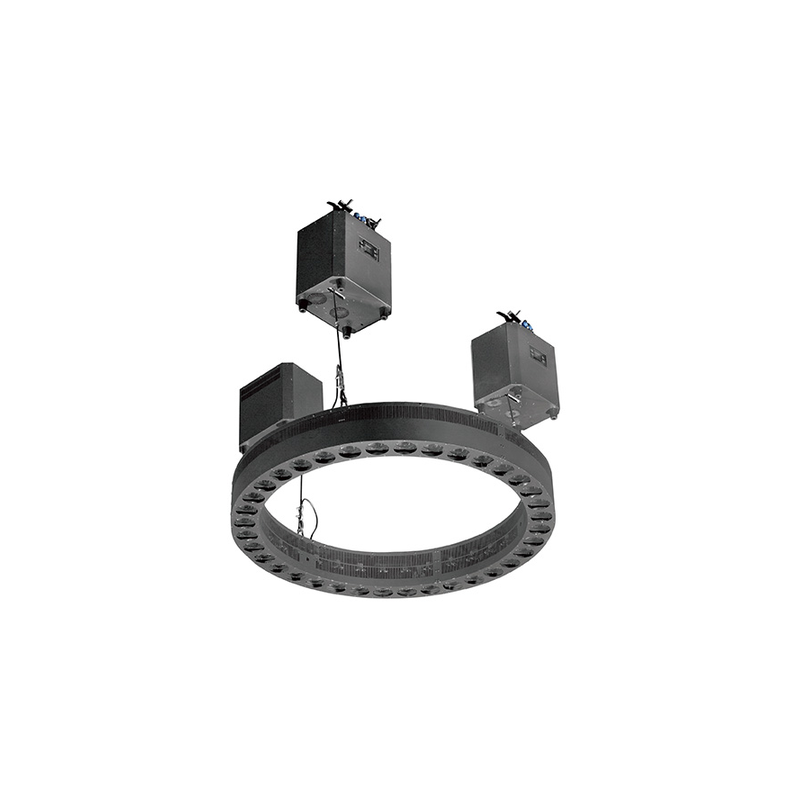

BMS-LIFTHALO36 is a 36-segment lifting halo ring light for aerial rings, club effects and stage looks.
The lifting assembly is specified as lifting stroke: 6 meters; maximum load: 10 kg; lifting speed: 0.5M/s; beam ball angle: 2.5°; beam ball pixel control: Single LED can be controlled individually.
Control is 4/9/144 channels, DMX512. Power: AC 90V-240V, 50/60Hz, 750W + 400W*3. Rating and environment: IP20, 0 °C to 40 °C, cooling by fans. Dimensions: 321 × 251 × 324mm, net weight 82 kg, gross weight 88 kg.
Dimensions & Accessories
Product Dimensions
321 × 251 × 324mm
Net Weight
82 kg
Carton Dimensions
Available on request
Gross Weight
88 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 12 Heads Lifting Beam BMS-LIFT12 | On request | On request | On request | On request | On request |
| Lifting Beam Strobe BMS-LIFTSTROBE | 800W | On request | IP20 | 38 kg | 41/101 channels |
| Lifting Halo Ring Light 36 BMS-LIFTHALO36 | 750W + 400W*3 | On request | IP20 | 82 kg | 4/9/144 channels |
| Lifting Rotation Beam BMS-LIFTROT | 550W | On request | IP20 | 44 kg | 26/58 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
How many DMX channels does it need?
4/9/144 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 750W + 400W*3, from AC 90V-240V, 50/60Hz, with power connector input/output.
What is the lifting specification?
Lifting stroke 6 meters, maximum load 10 kg.
