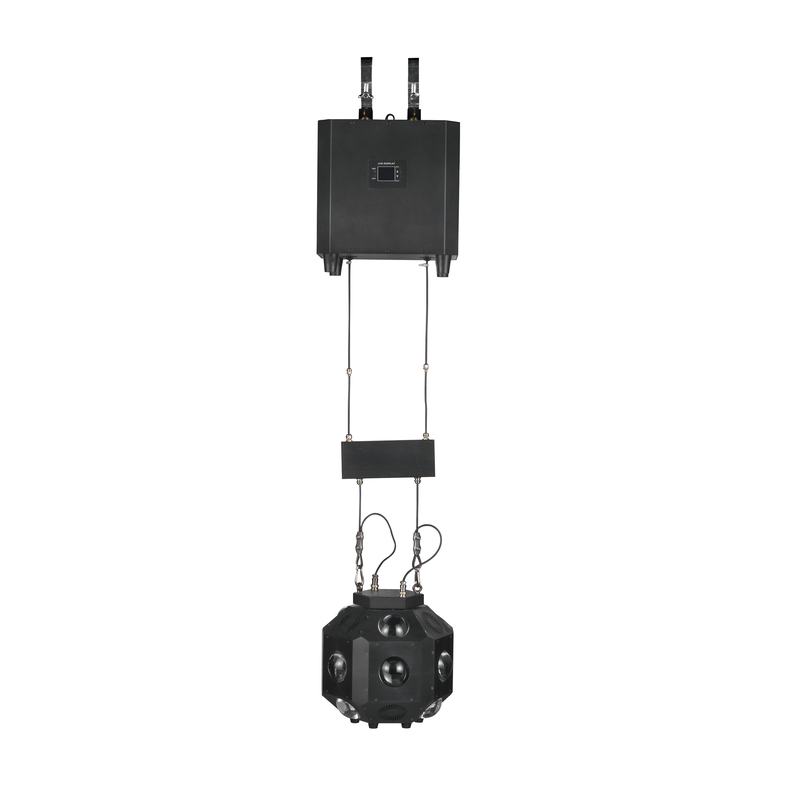

Lifting Rotation Beam
Lifting rotation beam: a rotating beam head on a motorised lift for clubs, festivals and live events.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Control
| DMX Channels | 26/58 channels |
Power
| Power Input | AC90-240V, 50/60Hz |
| Power Consumption | 550W |
| Power Connection | Power connector input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP20 |
| Operating Temperature | 5 °C to 45 °C |
| Cooling | Fans |
Lifting Host
| Lifting Stroke | 6-10 Meters |
| Maximum Load | 15 kg |
| Lifting Host Power | 50W |
| Lifting Host Net Weight | 19 kg |
| Lifting Host Gross Weight | 21 kg |
Beam Ball
| Beam Ball Type | 12 × 40W RGBW 4-in-1 LEDs |
| Beam Ball Diameter | 32cm |
| Light Exit Diameter | 70mm |
| Beam Ball Pixel Control | Single LED can be controlled individually |
| Beam Ball Power | 480W |
| Beam Ball Net Weight | 5 kg |
| Beam Ball Gross Weight | 6 kg |
Description
BMS-LIFTROT is a lifting rotation beam: a rotating beam head on a motorised lift for clubs, festivals and live events.
The lifting assembly is specified as lifting stroke: 6-10 Meters; maximum load: 15 kg; host power: 50W; beam ball diameter: 32cm; beam ball pixel control: Single LED can be controlled individually.
Control is 26/58 channels, DMX512. Power: AC90-240V, 50/60Hz, 550W. Rating and environment: IP20, Aluminum + Plastic, 5 °C to 45 °C, cooling by fans. Dimensions: net weight 44 kg, gross weight 49 kg.
Dimensions & Accessories
Product Dimensions
Available on request
Net Weight
44 kg
Carton Dimensions
Available on request
Gross Weight
49 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| 12 Heads Lifting Beam BMS-LIFT12 | On request | On request | On request | On request | On request |
| Lifting Beam Strobe BMS-LIFTSTROBE | 800W | On request | IP20 | 38 kg | 41/101 channels |
| Lifting Halo Ring Light 36 BMS-LIFTHALO36 | 750W + 400W*3 | On request | IP20 | 82 kg | 4/9/144 channels |
| Lifting Rotation Beam BMS-LIFTROT | 550W | On request | IP20 | 44 kg | 26/58 channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
How many DMX channels does it need?
26/58 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
No — it is IP20, so it is for indoor or covered stages. For rain-exposed work use the IP65 range: IP 380 Beam, IP 420 Beam, IP 12+12 Strobe and IP 24+12 Moving Strobe Wash.
What is the power requirement?
It draws 550W, from AC90-240V, 50/60Hz, with power connector input/output.
What is the lifting specification?
Lifting stroke 6-10 meters, maximum load 15 kg.
