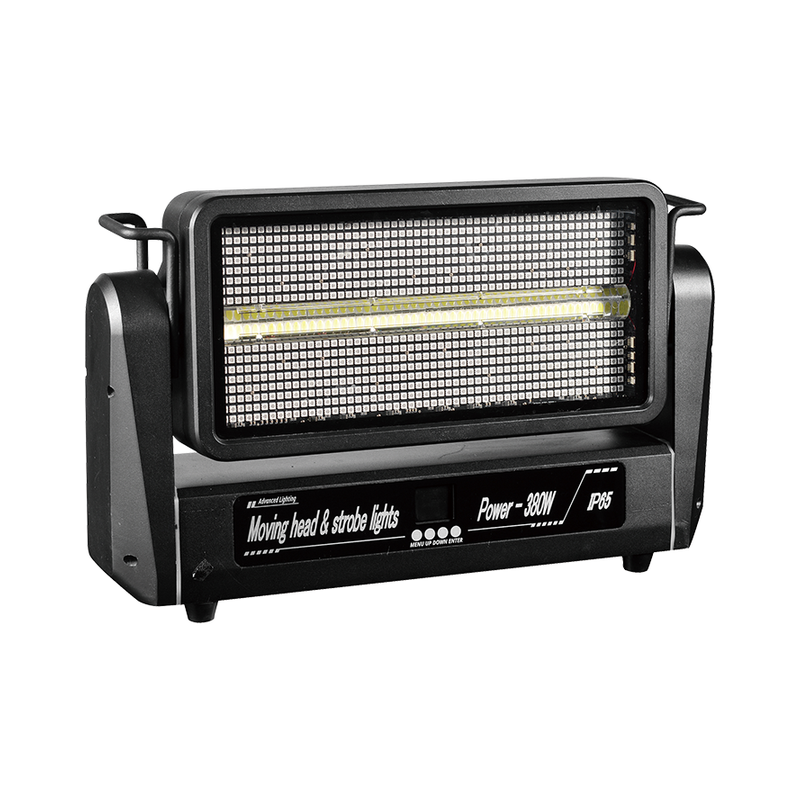

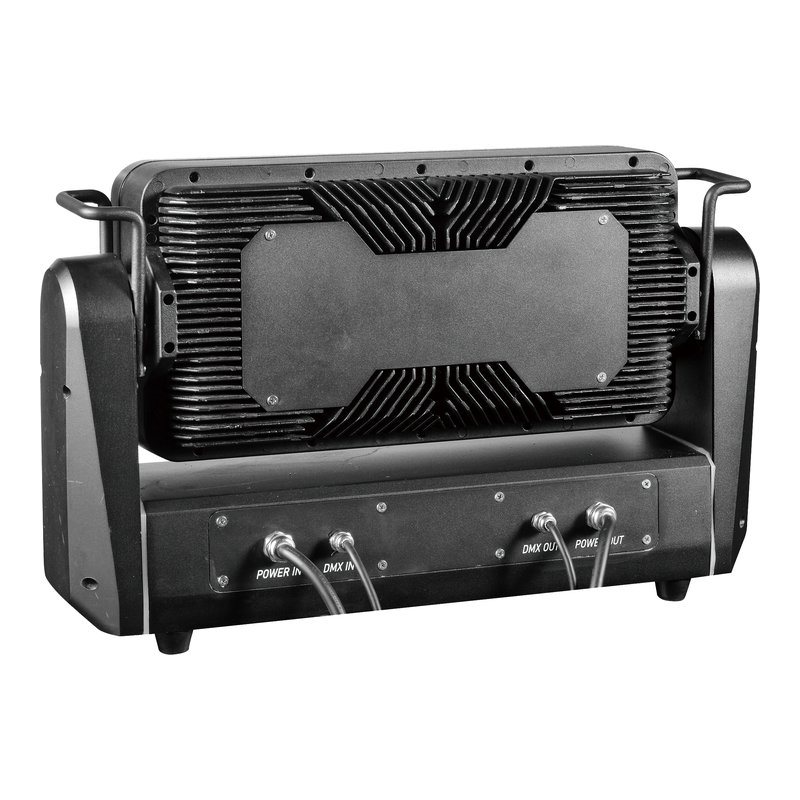

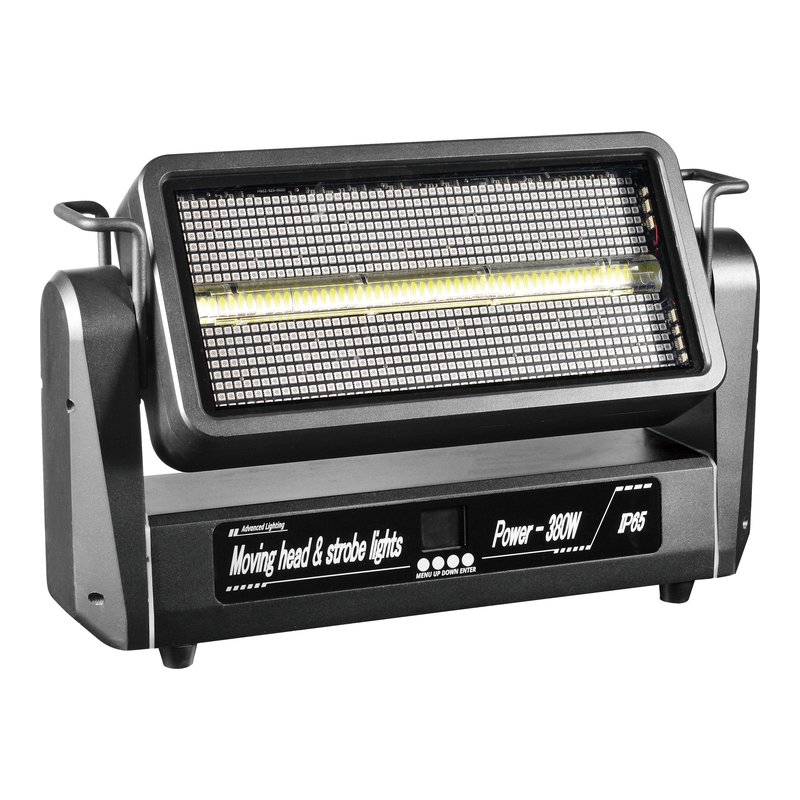

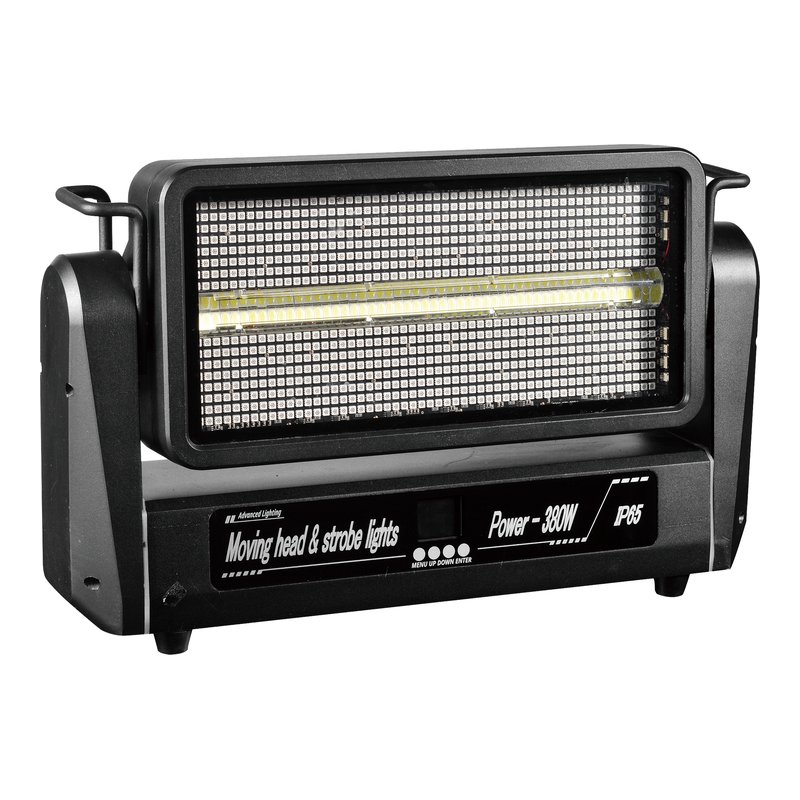

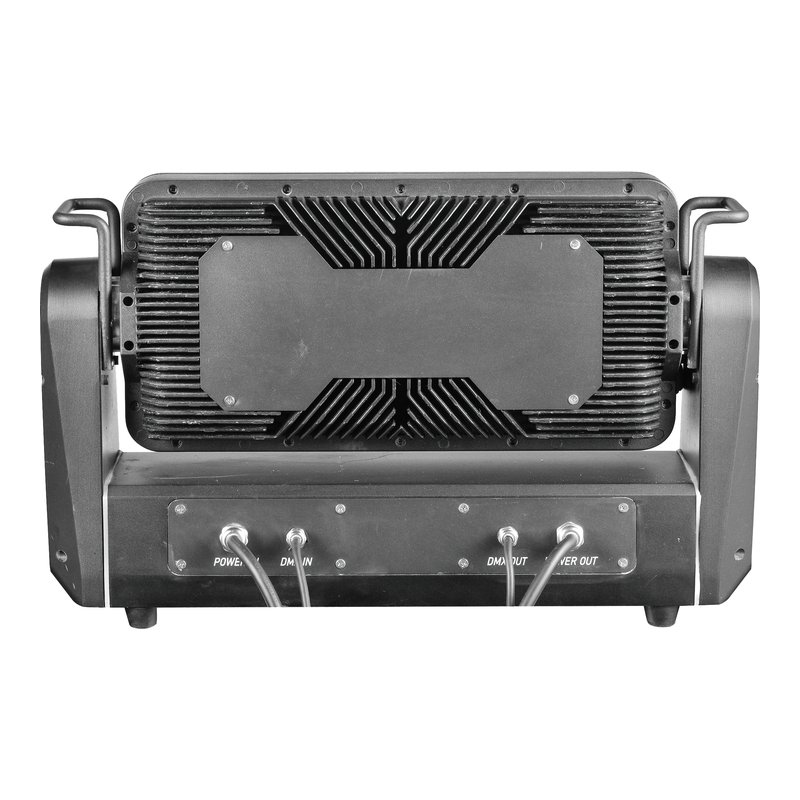

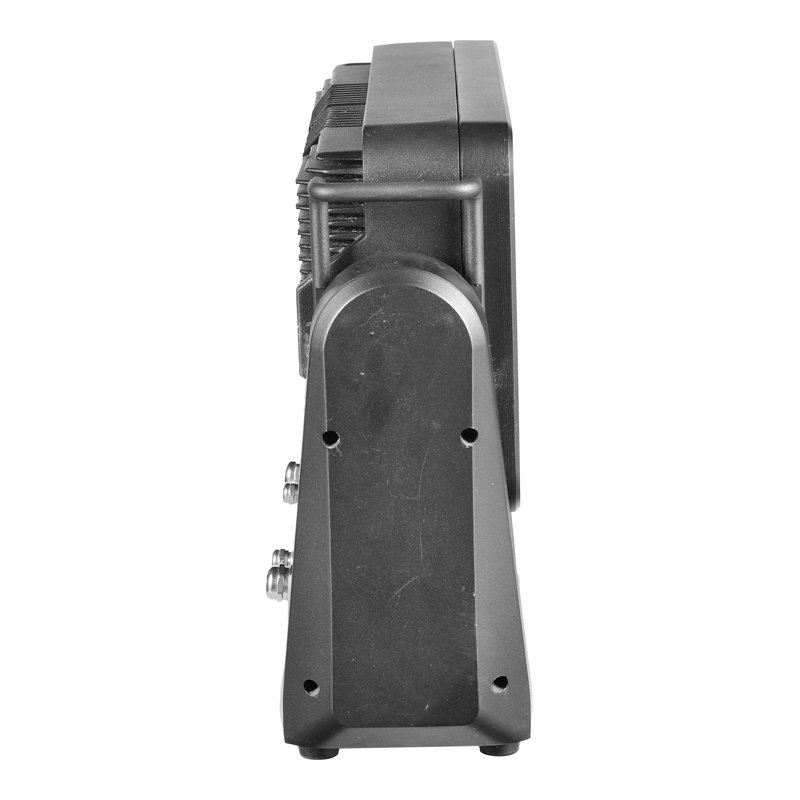

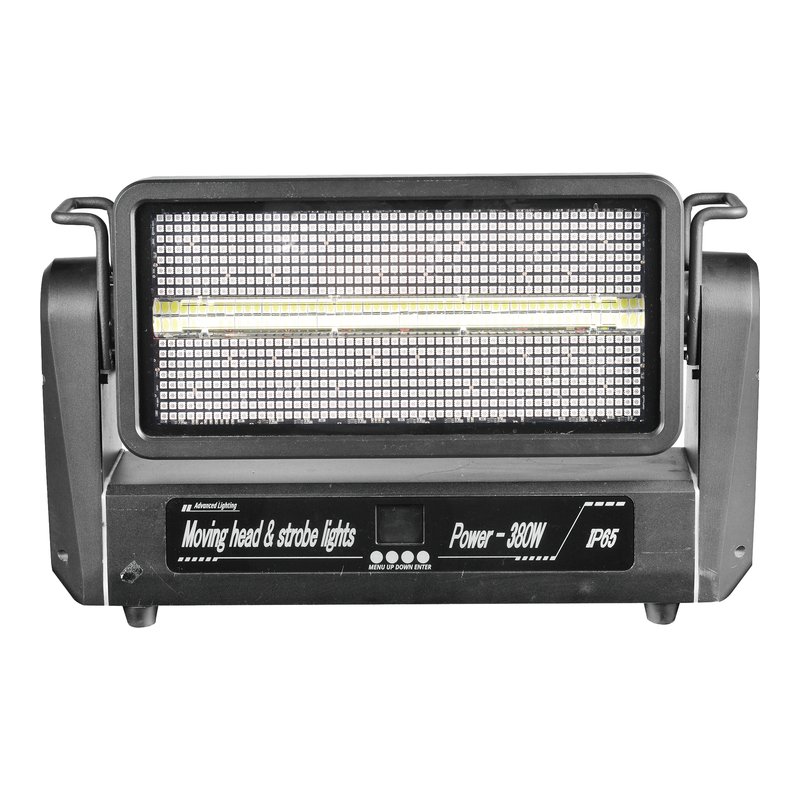

IP 24+12 Moving Strobe Wash
IP-rated 24+12 moving strobe wash for outdoor stages and festival rigs. Moving wash and strobe in one fixture.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| LED Type | 5050 0.5W RGB 3-in-1 LEDs |
| Number of LEDs | 864 × 0.5W |
| LED Segments | 24 |
| LED Colour | RGB |
Dynamic Effects
| Dimmer | 0-100% linear dimming |
| Strobe | 20Hz |
| Rotation Resolution | 8 - 16° |
| Built-in Effects | LED built-in rich macro effect |
Movement
| Tilt Selection Angle | 185° |
Control
| DMX Channels | 6/15/88 channels |
| Display | TFT LCD display, two-level menu structure combined with touch key control |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 500W |
| Power Connection | Hand-held Power supply Cannon input/output |
| Signal Connection | Hand-in-hand DMX signal 5-core or 3-core input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP65 |
| Protection Class | Temperature control, overheat protection |
| Operating Temperature | -30 °C to 50 °C |
| Cooling | Fans |
Description
BMS-IP2412WASH is an IP-rated 24+12 moving strobe wash for outdoor stages and festival rigs. Moving wash and strobe in one fixture; specs on request.
Effects and output: dimming: 0-100% linear dimming; strobe: 20Hz; built-in effects: LED built-in rich macro effect; rotation: 8 - 16°.
Control is 6/15/88 channels, DMX512, setup through TFT LCD display, two-level menu structure combined with touch key control. Power: AC100-240V, 50/60Hz, 500W. Signal: Hand-in-hand DMX signal 5-core or 3-core input/output. Rating and environment: IP65, Aluminum + Plastic, -30 °C to 50 °C, cooling by fans. Dimensions: 553 × 134 × 347 mm, net weight 18.5 kg, gross weight 20 kg.
Dimensions & Accessories
Product Dimensions
553 × 134 × 347 mm
Net Weight
18.5 kg
Carton Dimensions
630 × 415 × 295mm
Gross Weight
20 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| IP 12+12 Strobe BMS-IP1212STROBE | 400W | On request | IP65 | 9.5 kg | 4/12/50 channels |
| IP 24+12 Moving Strobe Wash BMS-IP2412WASH | 500W | On request | IP65 | 18.5 kg | 6/15/88 channels |
| IP 36 Matrix Beam Strobe BMS-IP36MATRIX | 400W | On request | IP65 | 9.5 kg | 4/13/114 channels |
| IP 36 RGBLAC 6-in-1 Wall Washer BMS-IP36WALL | 500W | On request | IP65 | 9.5 kg | 6/11/72 channels |
| IP 380 Beam BMS-IP380BEAM | 460W | 2° | IP65 | 21 kg | 16 Channels |
| IP 420 Beam BMS-IP420BEAM | 600W | 2° | IP65 | 26 kg | 16 Channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What LEDs does the IP 24+12 Moving Strobe Wash use?
5050 0.5W RGB 3-in-1 LEDs, 864 × 0.5W in total, split into 24 segments.
What strobe performance does it offer?
20Hz. Dimming is 0-100% linear dimming.
How many DMX channels does it need?
6/15/88 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
Yes — IP65, specified for -30 °C to 50 °C, so it can be used on rain-exposed stages and outdoor installs.
What is the power requirement?
It draws 500W, from AC100-240V, 50/60Hz, with hand-held power supply cannon input/output.
