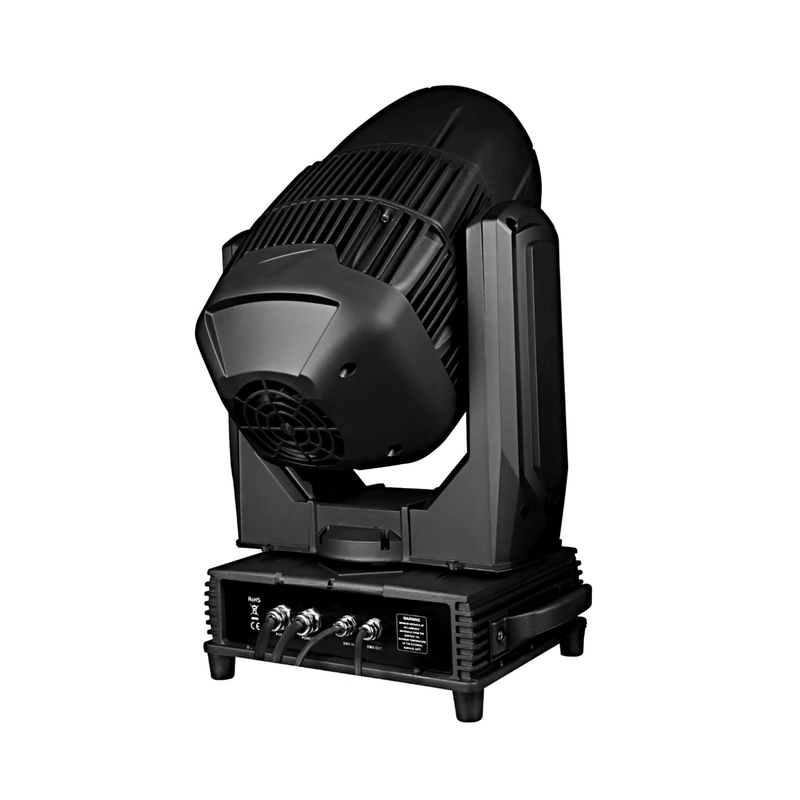

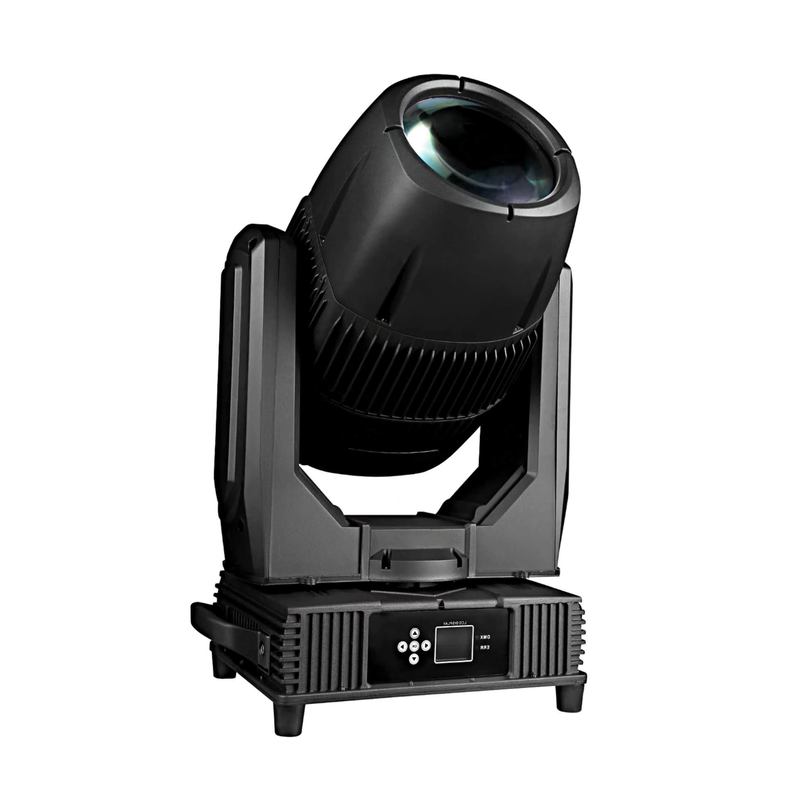

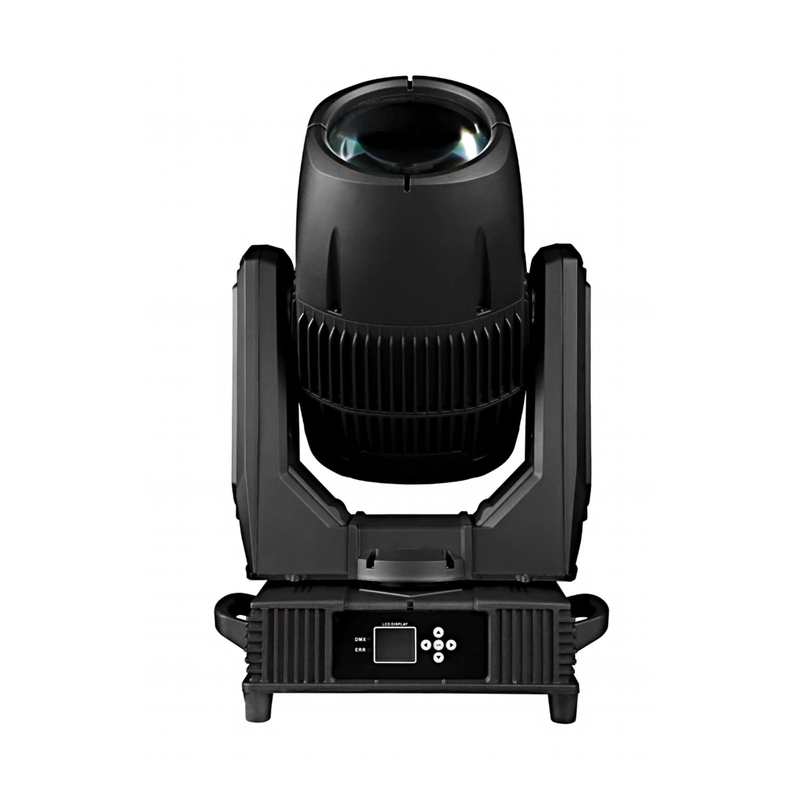

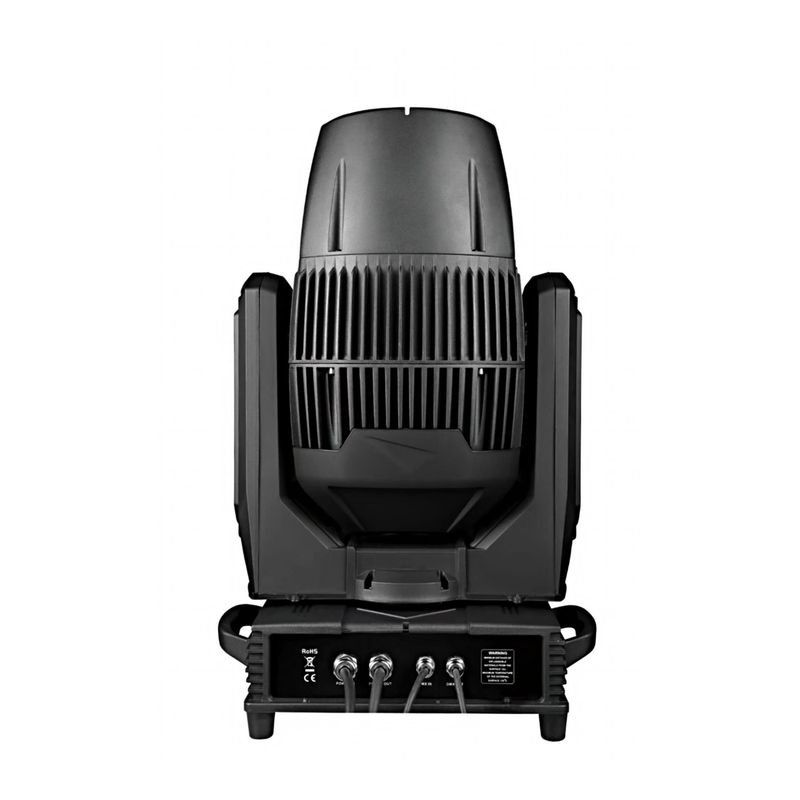

IP 420 Beam
Weatherproof 420W beam moving head for outdoor stages, festivals and permanent installs.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | High-brightness 420W imported bulb |
| Average Lamp Life | 2,000 hours |
| Beam Angle | 2° |
| Lens Aperture | 165mm |
Dynamic Effects
| Colour Wheel | 14 colors + white, color flow, bi-direction rainbow effect can be achieved |
| Fixed Gobo Wheel | 17 gobos + white |
| Prism | 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional |
| Dimmer | Mechanical linear dimming 0–100% |
| Strobe | Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast |
Movement
| Pan | 540°, accuracy 2.11°/ step, fine tuning accuracy 0.008° |
| Tilt | 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Magnetic encoder position with auto-correction for misalignment) |
Control
| DMX Channels | 16 Channels |
| Protocol | DMX512 |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 600W |
| Power Connection | Waterproof cable input/output |
| Signal Connection | Waterproof 3-pin XLR input/output |
Construction
| Housing Material | Outdoor-grade engineering plastic |
| Housing Colour | Black |
| IP Rating | IP65 |
| Operating Temperature | -20 °C to 40 °C |
| Cooling | Fans |
Description
BMS-IP420BEAM is a weatherproof 420W beam moving head for outdoor stages, festivals and permanent installs. The light source is High-brightness 420W imported bulb. The beam angle is 2°, through a 165mm lens. Lamp life is rated at 2,000 hours.
Effects and output: colour wheel: 14 colors + white, color flow, bi-direction rainbow effect can be achieved; gobo wheel: 17 gobos + white; prism: 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional; dimming: Mechanical linear dimming 0–100%; strobe: Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast.
Control is 16 Channels, DMX512. Power: AC100-240V, 50/60Hz, 600W. Signal: Waterproof 3-pin XLR input/output. Rating and environment: IP65, Outdoor-grade engineering plastic, -20 °C to 40 °C, cooling by fans. Dimensions: 430 × 260 × 630mm, net weight 26 kg, gross weight 30 kg.
Dimensions & Accessories
Product Dimensions
430 × 260 × 630mm
Net Weight
26 kg
Carton Dimensions
Available on request
Gross Weight
30 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| IP 12+12 Strobe BMS-IP1212STROBE | 400W | On request | IP65 | 9.5 kg | 4/12/50 channels |
| IP 24+12 Moving Strobe Wash BMS-IP2412WASH | 500W | On request | IP65 | 18.5 kg | 6/15/88 channels |
| IP 36 Matrix Beam Strobe BMS-IP36MATRIX | 400W | On request | IP65 | 9.5 kg | 4/13/114 channels |
| IP 36 RGBLAC 6-in-1 Wall Washer BMS-IP36WALL | 500W | On request | IP65 | 9.5 kg | 6/11/72 channels |
| IP 380 Beam BMS-IP380BEAM | 460W | 2° | IP65 | 21 kg | 16 Channels |
| IP 420 Beam BMS-IP420BEAM | 600W | 2° | IP65 | 26 kg | 16 Channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What beam angle does the IP 420 Beam use?
2°, through a 165mm lens. The angle is fixed by the optical train, so the look comes from the prisms and gobo wheel. The fixture carries 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional.
How far does it move?
Pan 540°, accuracy 2.11°/ step, fine tuning accuracy 0.008° and tilt 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Magnetic encoder position with auto-correction for misalignment).
What strobe performance does it offer?
Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast. Dimming is Mechanical linear dimming 0–100%.
How many DMX channels does it need?
16 Channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
Yes — IP65, specified for -20 °C to 40 °C, so it can be used on rain-exposed stages and outdoor installs.
