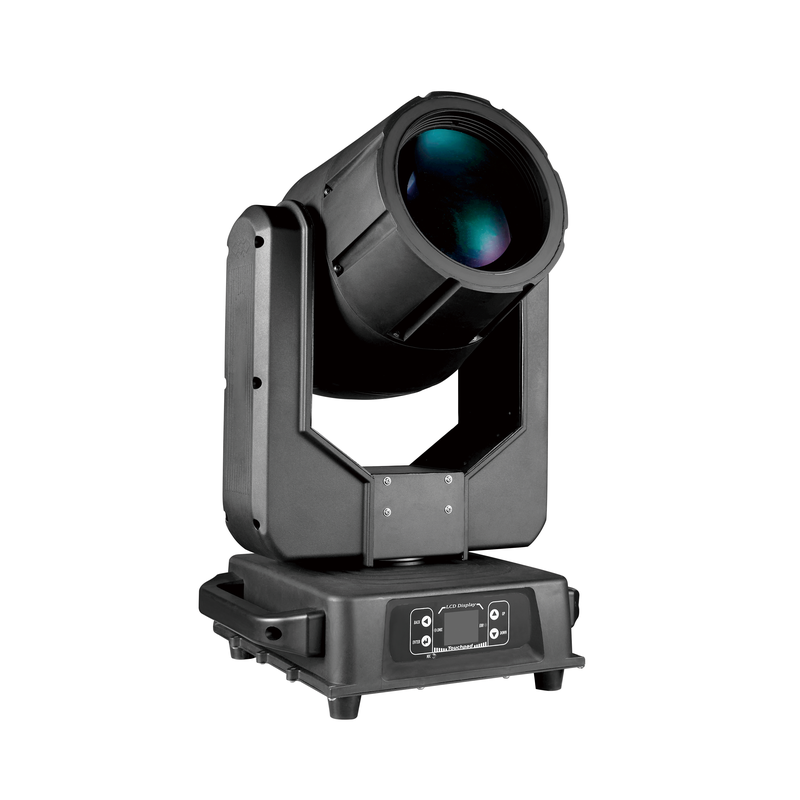

IP 380 Beam
Weatherproof 380W beam moving head for festivals, outdoor stages and permanent installation.
Features
- High-output professional light engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| Light Source | High-brightness 380W imported bulb |
| Average Lamp Life | 2,000 hours |
| Beam Angle | 2° |
| Lens Aperture | 160mm |
Dynamic Effects
| Colour Wheel | 13 colors + white |
| Fixed Gobo Wheel | 13 gobos + white |
| Prism | 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional |
| Dimmer | Mechanical linear dimming 0–100% |
| Strobe | Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast |
Movement
| Pan | 540°, accuracy 2.11°/ step, fine tuning accuracy 0.008° |
| Tilt | 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Magnetic encoder position with auto-correction for misalignment) |
Control
| DMX Channels | 16 Channels |
| Protocol | DMX512 |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 460W |
| Power Connection | Waterproof cable input/output |
| Signal Connection | Waterproof 3-pin XLR input/output |
Construction
| Housing Material | Outdoor-grade engineering plastic |
| Housing Colour | Black |
| IP Rating | IP65 |
| Operating Temperature | -20 °C to 40 °C |
| Cooling | Fans |
Description
BMS-IP380BEAM is a weatherproof 380W beam moving head for festivals, outdoor stages and permanent installation. The light source is High-brightness 380W imported bulb. The beam angle is 2°, through a 160mm lens. Lamp life is rated at 2,000 hours.
Effects and output: colour wheel: 13 colors + white; gobo wheel: 13 gobos + white; prism: 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional; dimming: Mechanical linear dimming 0–100%; strobe: Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast.
Control is 16 Channels, DMX512. Power: AC100-240V, 50/60Hz, 460W. Signal: Waterproof 3-pin XLR input/output. Rating and environment: IP65, Outdoor-grade engineering plastic, -20 °C to 40 °C, cooling by fans. Dimensions: 360 × 290 × 600mm, net weight 21 kg, gross weight 24 kg.
Dimensions & Accessories
Product Dimensions
360 × 290 × 600mm
Net Weight
21 kg
Carton Dimensions
790 × 340 × 505mm
Gross Weight
24 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| IP 12+12 Strobe BMS-IP1212STROBE | 400W | On request | IP65 | 9.5 kg | 4/12/50 channels |
| IP 24+12 Moving Strobe Wash BMS-IP2412WASH | 500W | On request | IP65 | 18.5 kg | 6/15/88 channels |
| IP 36 Matrix Beam Strobe BMS-IP36MATRIX | 400W | On request | IP65 | 9.5 kg | 4/13/114 channels |
| IP 36 RGBLAC 6-in-1 Wall Washer BMS-IP36WALL | 500W | On request | IP65 | 9.5 kg | 6/11/72 channels |
| IP 380 Beam BMS-IP380BEAM | 460W | 2° | IP65 | 21 kg | 16 Channels |
| IP 420 Beam BMS-IP420BEAM | 600W | 2° | IP65 | 26 kg | 16 Channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What beam angle does the IP 380 Beam use?
2°, through a 160mm lens. The angle is fixed by the optical train, so the look comes from the prisms and gobo wheel. The fixture carries 8-facet prism and 24-facet prism, can be overlapped, can be rotated bidirectional.
How far does it move?
Pan 540°, accuracy 2.11°/ step, fine tuning accuracy 0.008° and tilt 240°, accuracy 1.05°/ step, fine tuning accuracy 0.004° (Magnetic encoder position with auto-correction for misalignment).
What strobe performance does it offer?
Fast stroboscopic, multiple stroboscopic options, slow-medium-fast pulse, gradual full-medium-fast, random slow-medium-fast. Dimming is Mechanical linear dimming 0–100%.
How many DMX channels does it need?
16 Channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
Yes — IP65, specified for -20 °C to 40 °C, so it can be used on rain-exposed stages and outdoor installs.
