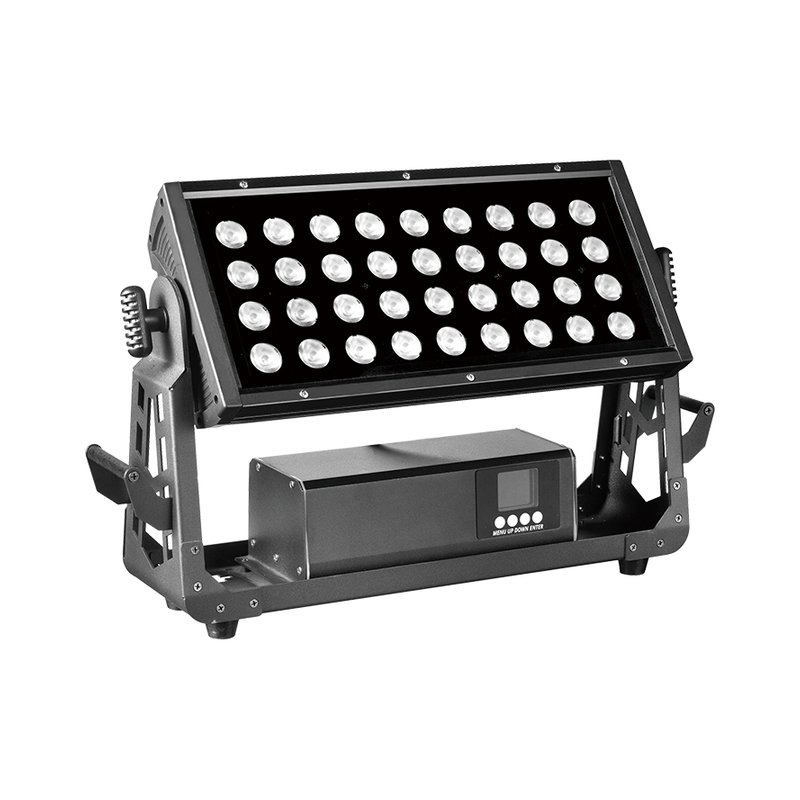

IP 36 RGBLAC 6-in-1 Wall Washer
IP-rated 36 RGBLAC 6-in-1 wall washer for architectural and outdoor facade lighting.
Features
- 1W high-output LED/discharge engine
- Precision optics for bright, uniform output
- Smooth dimming and multi-mode strobe effects
- DMX512 / RDM control with LCD display
- Rugged black housing optimized for touring
Applications
Parameters
Optical System
| LED Type | RGBLAC 6-in-1 LEDs |
| Number of LEDs | 36 × 20W |
| LED Segments | 12 |
| LED Colour | RGBLAC |
Dynamic Effects
| Dimmer | 0-100% linear dimming |
| Strobe | 20Hz |
| Built-in Effects | LED built-in rich macro effect |
Control
| DMX Channels | 6/11/72 channels |
Power
| Power Input | AC100-240V, 50/60Hz |
| Power Consumption | 500W |
| Power Connection | Hand-in-hand power supply Cannon input/output |
| Signal Connection | Hand-held DMX signal 5-core or 3-core input/output |
Construction
| Housing Material | Aluminum + Plastic |
| Housing Colour | Black |
| IP Rating | IP65 |
| Protection Class | Temperature control, overheat protection |
| Operating Temperature | -30 °C to 50 °C |
| Cooling | Fans |
Description
BMS-IP36WALL is an IP-rated 36 RGBLAC 6-in-1 wall washer for architectural and outdoor facade lighting.
Effects and output: dimming: 0-100% linear dimming; strobe: 20Hz; built-in effects: LED built-in rich macro effect.
Control is 6/11/72 channels, DMX512. Power: AC100-240V, 50/60Hz, 500W. Signal: Hand-held DMX signal 5-core or 3-core input/output. Rating and environment: IP65, Aluminum + Plastic, -30 °C to 50 °C, cooling by fans. Dimensions: 546 × 130 × 341mm, net weight 9.5 kg, gross weight 11 kg.
Dimensions & Accessories
Product Dimensions
546 × 130 × 341mm
Net Weight
9.5 kg
Carton Dimensions
615 × 365 × 285mm
Gross Weight
11 kg
Packaging Option
Optional flight case available
Factory Configuration
- Power cable × 1
- Signal cable × 1
- Safety rope × 1
- User manual × 1
Compare in Series
Same family, different trade-offs. Values are taken from the current production datasheets of each model; anything not published is shown as On request.
| Model | Power | Beam / Zoom | IP | Net Weight | DMX |
|---|---|---|---|---|---|
| IP 12+12 Strobe BMS-IP1212STROBE | 400W | On request | IP65 | 9.5 kg | 4/12/50 channels |
| IP 24+12 Moving Strobe Wash BMS-IP2412WASH | 500W | On request | IP65 | 18.5 kg | 6/15/88 channels |
| IP 36 Matrix Beam Strobe BMS-IP36MATRIX | 400W | On request | IP65 | 9.5 kg | 4/13/114 channels |
| IP 36 RGBLAC 6-in-1 Wall Washer BMS-IP36WALL | 500W | On request | IP65 | 9.5 kg | 6/11/72 channels |
| IP 380 Beam BMS-IP380BEAM | 460W | 2° | IP65 | 21 kg | 16 Channels |
| IP 420 Beam BMS-IP420BEAM | 600W | 2° | IP65 | 26 kg | 16 Channels |
Not sure which one fits your venue? Send us the room size and ceiling height and we will spec it for you.
Frequently Asked Questions
What LEDs does the IP 36 RGBLAC 6-in-1 Wall Washer use?
RGBLAC 6-in-1 LEDs, 36 × 20W in total, split into 12 segments.
What strobe performance does it offer?
20Hz. Dimming is 0-100% linear dimming.
How many DMX channels does it need?
6/11/72 channels, selectable in the menu. The longer modes expose the finer control channels for prism, gobo and fine pan/tilt work.
Can it be used outdoors?
Yes — IP65, specified for -30 °C to 50 °C, so it can be used on rain-exposed stages and outdoor installs.
What is the power requirement?
It draws 500W, from AC100-240V, 50/60Hz, with hand-in-hand power supply cannon input/output.
